Gear Shift Lever Front Case Assembly Components

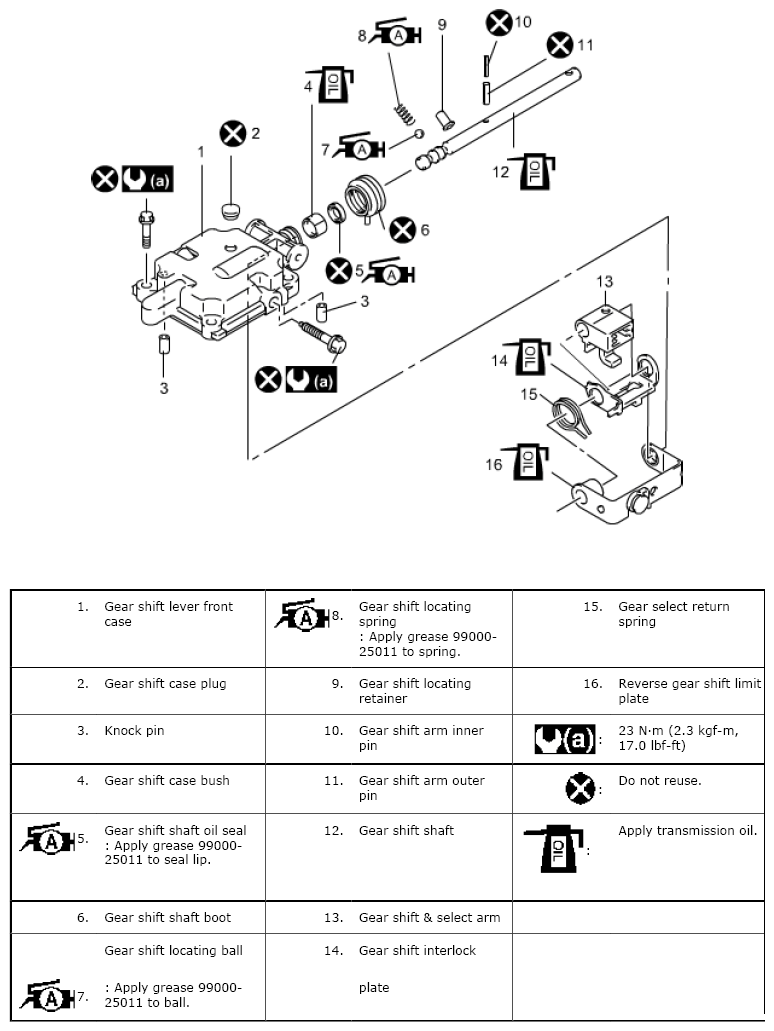

Fig 1: Exploded View Of Gear Shift Lever Front Case Assembly
G08899106Courtesy of SUZUKI OF AMERICA CORP.
