Extension Case Oil Level Check

Lift up vehicle and check oil leakage.
Remove oil level/filler plug (1) and check oil level is lower end of oil level/filler plug hole (2).
If oil level is not lower end of oil level/filler plug hole, add specified oil up to plug hole.
Apply sealant to thread of oil level/filler plug, and tighten it to specified torque referring to EXTENSION CASE OIL CHANGE .

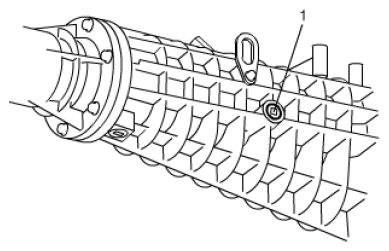

Fig 1: Identifying Filler Plug On Extension Case
Courtesy of SUZUKI OF AMERICA CORP.

Fig 2: Identifying Filler Plug Hole
Courtesy of SUZUKI OF AMERICA CORP.
