Extension Case Disassembly and Reassembly: Reassembly

Reference: EXTENSION CASE ASSEMBLY INSPECTION

1. Install intermediate front bearing (1) and/or intermediate rear bearing (2) using hydraulic press (3) and bearing puller (4).
   Fig 1: Installing Intermediate Front Bearing/Intermediate Rear Bearing Using Hydraulic Press And Bearing Puller

   Courtesy of SUZUKI OF AMERICA CORP.
2. Install oil seal (1) to front extension case (2) until it become flush with case using special tool, and then apply grease to oil seal lip.
   NOTE: When installing oil seal, face its spring side inward.

   "A": Grease 99000-25011 (SUZUKI Super Grease A)

   Special Tool

   (A): 09951-46010

   Fig 2: Installing Oil Seal To Front Extension Case Using Special Tool

   Courtesy of SUZUKI OF AMERICA CORP.
3. Install intermediate shaft with bearings to front extension case.
4. Assemble rear extension case (2) as follows.
   1. Install needle bearing (1) to rear extension case until it become flush with case using special tool.

      Special Tool

      (A): 09913-75520

      Fig 3: Installing Needle Bearing To Rear Extension Case Using Special Tool

      Courtesy of SUZUKI OF AMERICA CORP.
   2. Install oil seal (1) to rear extension case (2) until it become flush with case using special tool, and then apply grease to oil seal lip.

      "A": Grease 99000-25011 (SUZUKI Super Grease A)

      Special Tool

      (A): 09913-75510

      Fig 4: Installing Oil Seal To Rear Extension Case Using Special Tool

      Courtesy of SUZUKI OF AMERICA CORP.
5. Clean mating surfaces of front extension case and rear extension case (1), apply sealant to rear extension case as shown in figure by such amount that its section is 1.5 mm (0.059 in.) in diameter, mate rear extension case with front extension case, and then tighten bolts to specified torque.

   "A": Sealant 99000-31260 (SUZUKI Bond No. 1217G)

   Tightening torque

   Extension case bolt: 23 N.m (2.3 kgf-m, 17.0 lbf-ft)

   Fig 5: Identifying Front Extension Case And Rear Extension Case Sealant Applying Area

   Courtesy of SUZUKI OF AMERICA CORP.
6. Install damper (1) to rear extension case (2) and tighten damper bolts (3) to specified torque.

   Tightening torque

   Damper bolts (a): 50 N.m (5.0 kgf-m, 36.5 lbf-ft)

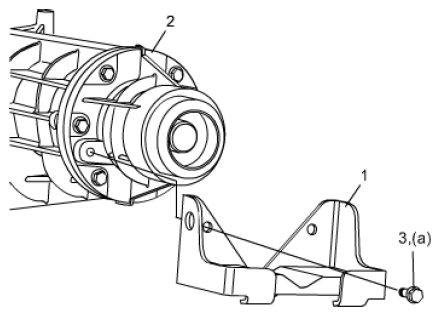

   Fig 6: Rear Extension Case, Damper And Bolts With Torque Specifications

   Courtesy of SUZUKI OF AMERICA CORP.
