Engine Rear Mounting Replacement

When replacement of mounting parts are necessary, torque bolts as specified below.

Tightening torque

Engine rear mounting No. 1 bolt (a): 55 N.m (5.5 kgf-m, 40.0 lbf-ft)

Engine rear mounting member bolt (b): 55 N.m (5.5 kgf-m, 40.0 lbf-ft)

Engine rear mounting No. 2 bolt (c): 55 N.m (5.5 kgf-m, 40.0 lbf-ft)

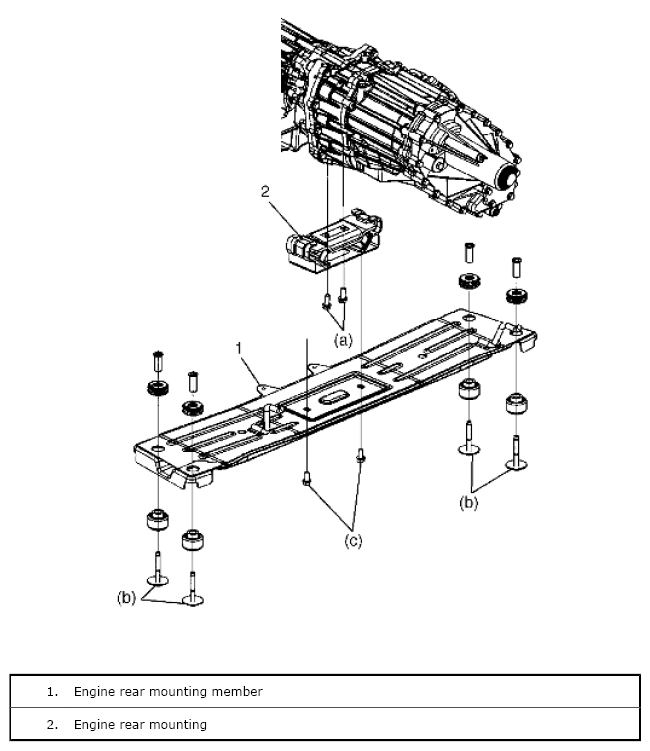

Fig 1: Identifying Engine Rear Mounting And Related Components

Courtesy of SUZUKI OF AMERICA CORP.
