Wheel Alignment Specifications

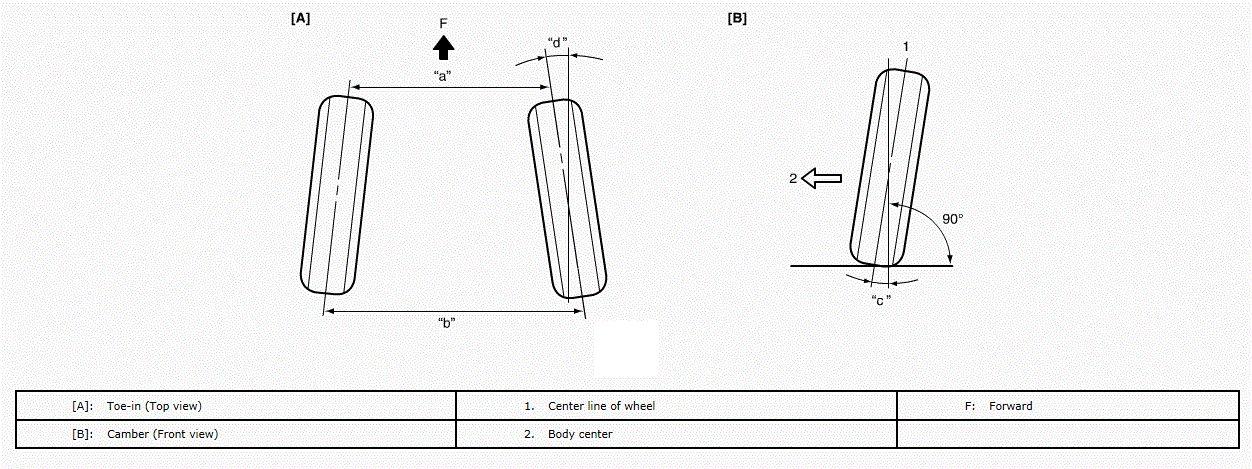

Toe ("b" - "a")

Front: 0.0 ± 2.0 mm (0 ± 0.0787 in.)

Rear: IN 6.0 ± 2.0 mm (0.2362 ± 0.0787 in.)

Toe (degree) (each wheel)*1 ("d")

Front: 0° ± 5'

Rear: 0° 14' ± 5'

Camber (degree) "c"

Front: 0° 00' ± 1°

Rear: -1° 15' ± 40'

Caster (degree)

Front: 2° 30'

Side Slip (on one person)*1

Front: IN 1.5 to OUT 1.5 mm/m (IN 0.0591 to OUT 0.0591 in./3.3 ft)

Rear: IN 7.5 mm/m (IN 0.2953 in./3.3 ft)

Steering angle (Turning angle)

Inside: 37.0° ± 3°

Outside: 32.0° ± 3°
