Suspension Control Arm/Bushing Disassembly and Reassembly: Reassembly

NOTE: Apply grease (included in the repair kit) to ball joint and inside of ball stud boot when the ball stud boot is replaced.

Front bushing
Press-fit front bushing (1) by using special tools and press (2).

Special Tool

(A): 09945-55410

(B): 09913-75821

NOTE: Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.

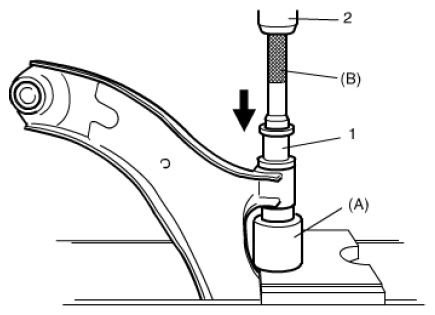

Fig 1: Press-Fitting Front Bushing Using Special Tools And Press
Courtesy of SUZUKI OF AMERICA CORP.
Install rubber stopper (1).

Fig 2: Identifying Rubber Stopper
Courtesy of SUZUKI OF AMERICA CORP.
