Suspension Control Arm/Bushing Disassembly and Reassembly: Disassembly

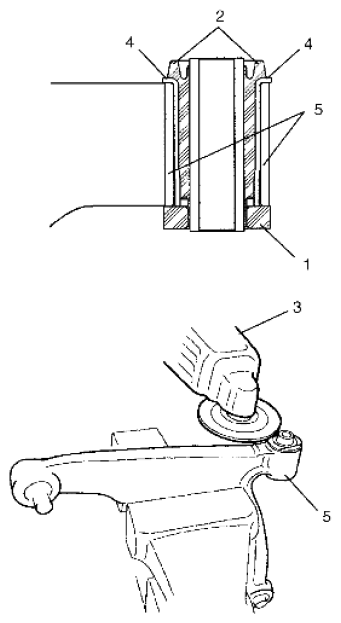

Remove rubber stopper (1).
Cut rubber (2) of flange of suspension control arm front bushing.
Using grinder (3), grind off flange (4) of front bushing.
NOTE: If you grind the flange (4) of front bushing too much, you will damage the suspension control arm (5).
Limit the amount of grinding to the minimum amount necessary.

Fig 1: Caulking Drive Shaft Nut
Courtesy of SUZUKI OF AMERICA CORP.
Push out bushing by using hydraulic press (2) and special tools.
Special Tool

(A): 09945-55410

(B): 09913-75821

Fig 2: Pushing Out Bushing Using Hydraulic Press And Special Tools
Courtesy of SUZUKI OF AMERICA CORP.
