Front Wheel Hub Assembly and Steering Knuckle Components

NOTE: The front wheel hub assembly will lose its original performance if it is disassembled.
Do not try to disassemble and repair the front wheel hub assembly. If any faulty condition is found, replace the front wheel hub assembly with a new one.

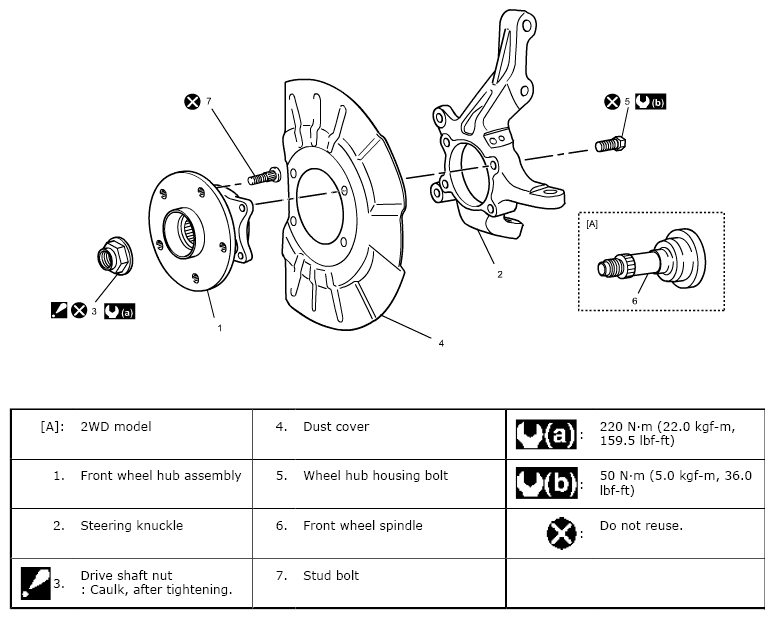

Fig 1: Identifying Front Wheel Hub Assembly And Steering Knuckle Components

Courtesy of SUZUKI OF AMERICA CORP.
