Front Suspension Frame, Stabilizer Bar and/or Bushing Components

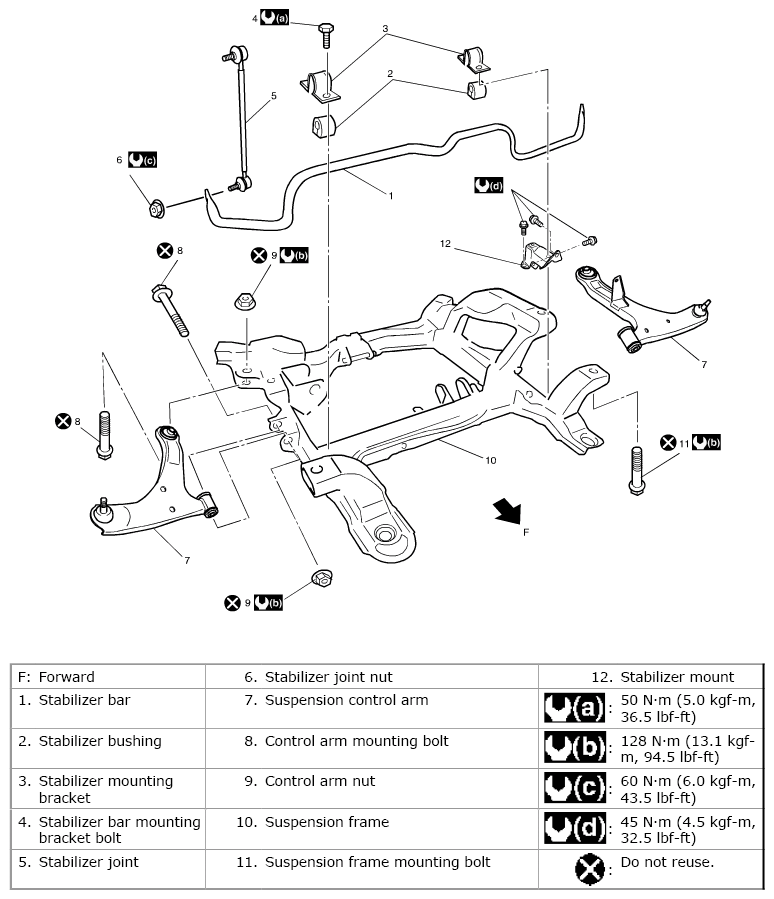

Fig 1: Exploded View Of Front Suspension Frame, Stabilizer Bar And/Or Bushing
G08895593Courtesy of SUZUKI OF AMERICA CORP.
