Front Strut Assembly Disassembly and Reassembly: Disassembly

  1. Attach special tool (A) to coil spring as shown. Turn special tool bolts alternately until coil spring tension is released. Rotate the strut around its axis to confirm that the coil spring is released or not.

    Special Tool

    (A): 09943-25010

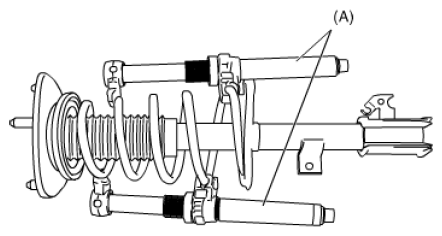

    Fig 1: Identifying Special Tools On Coil Spring
    G08895555Courtesy of SUZUKI OF AMERICA CORP.
  2. While keeping coil spring compressed, remove strut nut with special tools as shown.

    Special Tool

    (A): 09900-00411

    (B): 09900-00414

    (C): 09941-56510

    Fig 2: Removing Strut Nut Using Special Tools
    G08895556Courtesy of SUZUKI OF AMERICA CORP.
  3. Disassemble strut assembly.
