Steering Angle Sensor Removal and Installation: Removal

  1. Remove steering wheel and contact coil cable assembly. Refer to STEERING WHEEL REMOVAL AND INSTALLATION  and CONTACT COIL CABLE ASSEMBLY REMOVAL AND INSTALLATION .
  2. Remove steering angle sensor (2) from contact coil cable assembly (3) while opening fitting parts (1) of contact coil cable assembly.

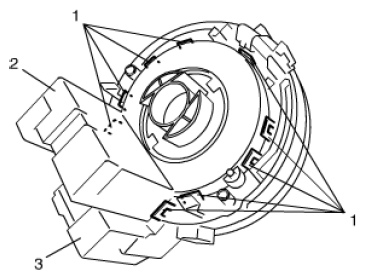

    Fig 1: Identifying Steering Angle Sensor, Contact Coil Cable Assembly And Fitting Parts
    G08899274Courtesy of SUZUKI OF AMERICA CORP.
