Tie-Rod End Removal and Installation: Removal

Hoist vehicle and remove wheel.
Remove cotter pin (4) and tie-rod end nut (3) from knuckle.

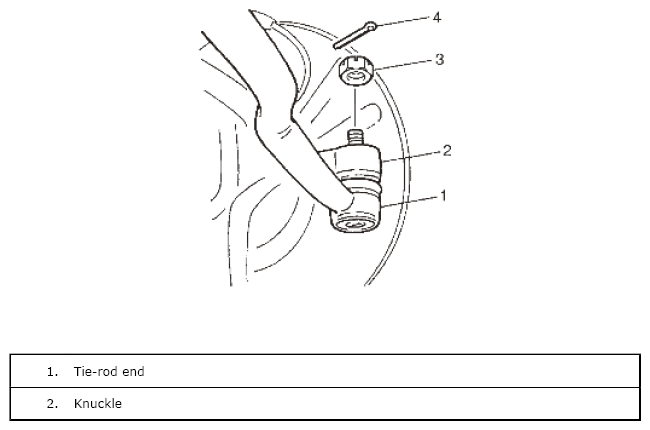

Fig 1: Identifying Knuckle Tie-Rod End, Knuckle, Cotter Pin And Tie-Rod End Nut
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect tie-rod end (1) by using puller (2).

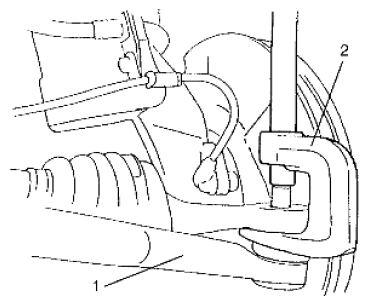

Fig 2: Disconnecting Tie-Rod End Using Puller
Courtesy of SUZUKI OF AMERICA CORP.
To facilitate adjustment after installation, put a mark (2) on tie-rod thread indicating position of tie-rod end lock nut (3). Then loosen lock nut (3) and remove tie-rod end (4) from tie-rod (1).

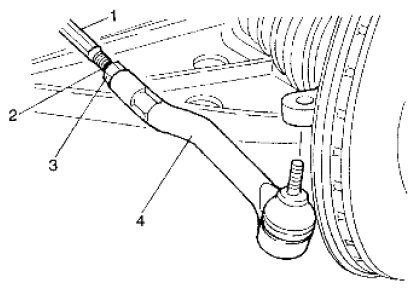

Fig 3: Identifying Lock Nut, Tie-Rod End, Tie-Rod And End Lock Nut
Courtesy of SUZUKI OF AMERICA CORP.
