Steering Gear Case Mount Bushing Removal and Installation: Installation

NOTE: Any removed bushing will not fit properly if you reuse it.
Always use a new bushing.

Press-fit new bushing (1) using special tools and press (2).
Special Tool

(A): 09913-75821

(B): 09945-55410

NOTE: Before installing bushing, apply soap water on its circumference to facilitate installation.

Fig 1: Pressing-Fit Bushing Using Special Tools And Press
Courtesy of SUZUKI OF AMERICA CORP.

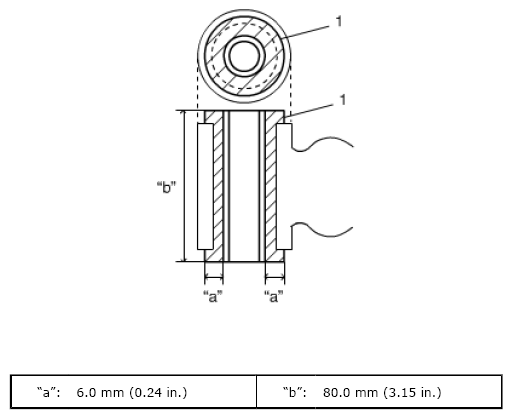

Press-fit bushing (1) so that dimensions in figure are satisfied.

Fig 2: Identifying Press-Fit Bushing
Courtesy of SUZUKI OF AMERICA CORP.
Install P/S gear case assembly referring to P/S GEAR CASE ASSEMBLY REMOVAL AND INSTALLATION .
