P/S Pump Removal and Installation: Removal

NOTE: Be sure to clean each joint of suction and discharge sides thoroughly before removal.

Disconnect negative (-) cable at battery.
Take out P/S fluid in reservoir with syringe or such.
Remove intake manifold INTAKE MANIFOLD REMOVAL AND INSTALLATION .
Disconnect high pressure pipe and suction hose from P/S pump.
NOTE: As fluid flows out of disconnected joints, put a receptacle under joints or a plug to pipe.
Disconnect pressure switch lead wire at switch terminal.
Remove accessory drive (P/S) belt. Refer to ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION .
Remove P/S pump mounting bolts (1).
Remove P/S pump (2).

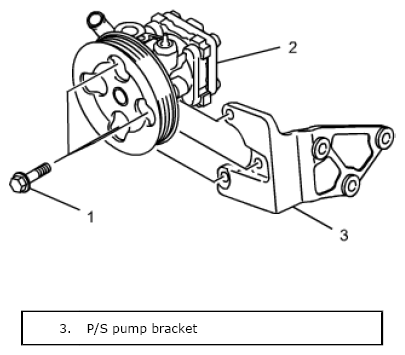

Fig 1: Identifying P/S Pump, Bracket And Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.

NOTE: Plug each port of removed pump to prevent dust or any other foreign matter from entering.
