Suspension System Inspection: Front

Check stabilizer bushing for damage, wear or deformation.
- Check stabilizer bar and joints for damage or deformation.
Inspect strut for damage, deformation, oil leakage and operation. If strut is found faulty, replace it. Refer to FRONT STRUT ASSEMBLY CHECK for operation check.
- Inspect strut dust cover for damage or crack.
Check ball joint stud dust seal (boot) for leaks, detachment, tear or other damage.
For checking procedure, refer to Steps 1) to 11) of SUSPENSION CONTROL ARM JOINT CHECK .

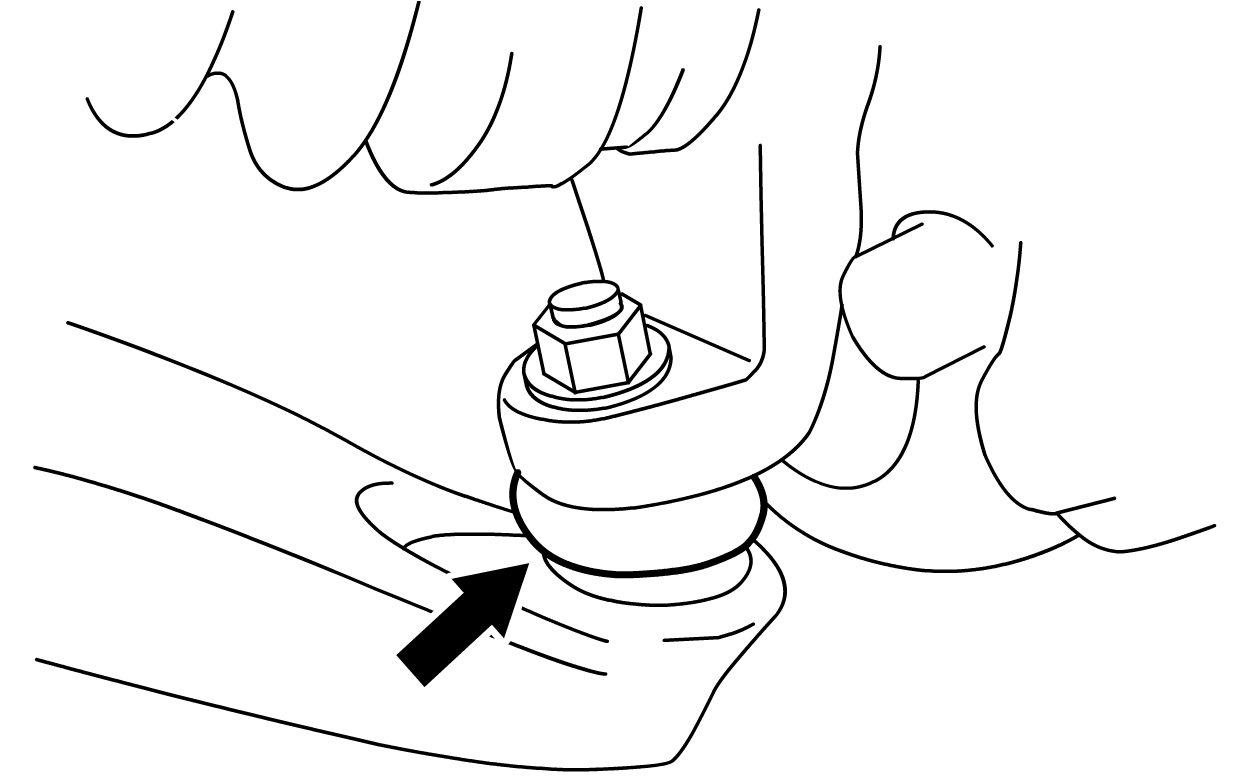

Fig 1: Checking Ball Joint Stud Dust Seal (Boot) For Leaks, Detachment, Tear Or Other Damage
Courtesy of SUZUKI OF AMERICA CORP.
Check suspension control arm bushing for damage, wear or deterioration.

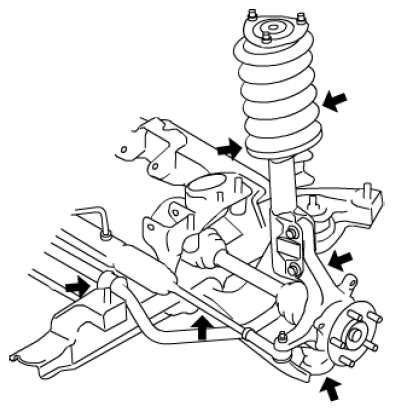

Fig 2: Locating Front Suspension System Checking Points
Courtesy of SUZUKI OF AMERICA CORP.
Check other suspension parts for damage, loose or missing parts; also for parts showing signs of wear or lack of lubrication. Replace any parts found defective.
