Power Steering (P/S) System Inspection

Visually check power steering system for fluid leakage and hose for damage and deterioration.
Repair or replace defective parts, if any.

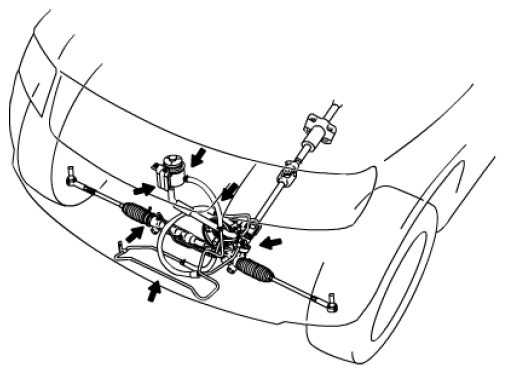

Fig 1: Locating Power Steering (P/S) System Checking Points
Courtesy of SUZUKI OF AMERICA CORP.
Check fluid level with engine stopped. If it is lower than LOWER level line, pour fluid up to UPPER level line.
NOTE: Fluid level should be checked when fluid is cool.

Fig 2: Identifying Fluid Level
Courtesy of SUZUKI OF AMERICA CORP.
