Ignition Coil (Plug Cap) Inspection

  1. Remove ignition coil assemblies. Refer to IGNITION COIL ASSEMBLY REMOVAL AND INSTALLATION .
  2. Check ignition coil assembly for damage, deterioration and terminal corrosion.

    If defective condition is found, replace.

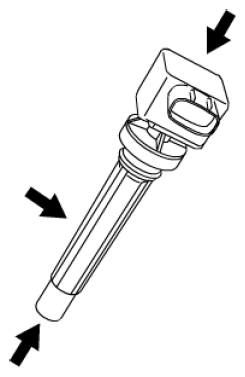

    Fig 1: Checking Ignition Coil Assembly For Damage, Deterioration And Terminal Corrosion
    G08895177Courtesy of SUZUKI OF AMERICA CORP.
  3. Install ignition coil assemblies. Refer to IGNITION COIL ASSEMBLY REMOVAL AND INSTALLATION .
