Fuel Line and Connection Inspection

Visually inspect fuel lines and connections for evidence of fuel leakage, hose cracking and damage. Make sure all clamps are secure.

Repair leaky joints, if any.

Replace hoses that are suspected of being cracked.

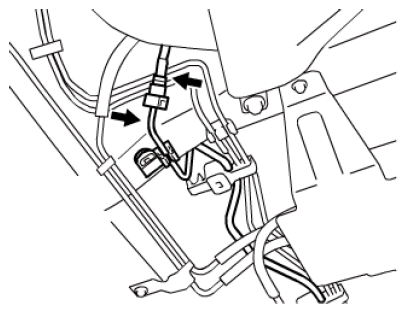

Fig 1: Locating Fuel Lines Connections
G08895179Courtesy of SUZUKI OF AMERICA CORP.
