EVAP Canister Replacement
WARNING:
Service operation of any type performed on the fuel system involves a risk of fire and personal injury if proper precautions are not taken.
Be sure to take the following precautions when working on the fuel system.
Be sure to take the following precautions when working on the fuel system.
- Disconnect the negative (-) cable from the battery.
- Do not smoke. Put up "NO SMOKING" signs around the work area.
- Be sure to remove the fuel filler cap from the fuel filler neck to relieve the fuel tank of fuel vapor pressure, and then reinstall the cap.

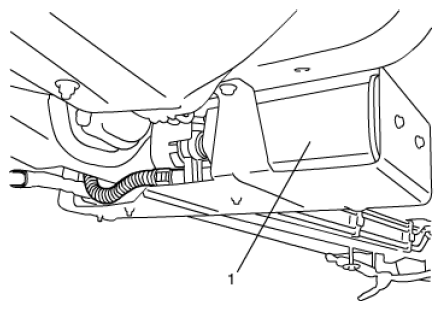

Replace EVAP canister (1) with new one. Refer to EVAP CANISTER REMOVAL AND INSTALLATION .
