Cooling System Hose and Connection Inspection

  1. Visually inspect cooling system hoses for any evidence of leakage and cracks. Examine them for damage, and check connection clamps for tightness.
  2. Replace all hoses which show evidence of leakage, cracks or other damage. Replace all clamps which cannot maintain proper tightness.

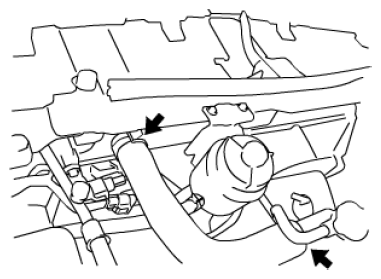

    Fig 1: Locating System Hoses Connections
    G08895173Courtesy of SUZUKI OF AMERICA CORP.
