Brake Disc and Pad Inspection

Check front and rear disc brake pads and discs for excessive wear, damage and deflection.

Replace parts as necessary. For details, refer to FRONT BRAKE DISC AND PAD INSPECTION and/or REAR BRAKE DISC AND PAD INSPECTION .

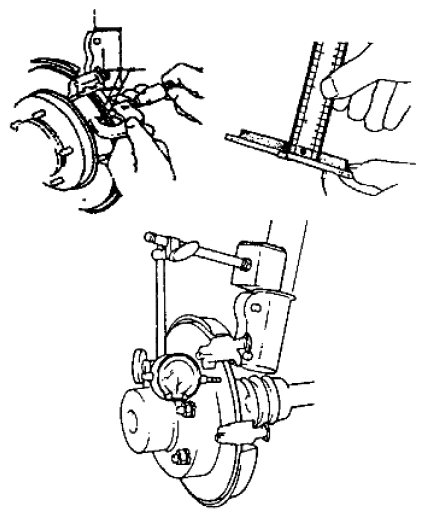

Fig 1: Checking Front And Rear Disc Brake Pads And Discs

Courtesy of SUZUKI OF AMERICA CORP.
