Repair Instructions: Removal: Notes

  1. Disconnect negative (-) cable at battery.
  2. Disable air bag system referring to DISABLING AIR BAG SYSTEM:Advanced Air Bag  or DISABLING AIR BAG SYSTEM:Except Advanced Air Bag  .
  3. Disconnect blower motor lead wire (2) at coupler.
  4. Remove blower motor (1) from HVAC unit.

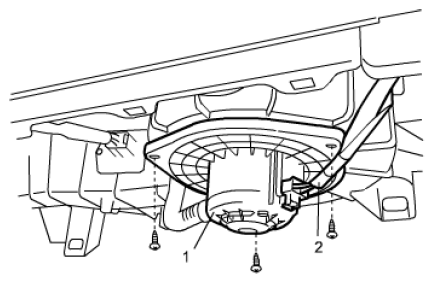

    Fig 1: Identifying Blower Motor
    G08899303Courtesy of SUZUKI OF AMERICA CORP.
