Key Indicator Lamp Check
WARNING: This page is about a different car, the 2006 Suzuki Grand Vitara. However, it is still accessible from the selected car via links, so may be relevant.

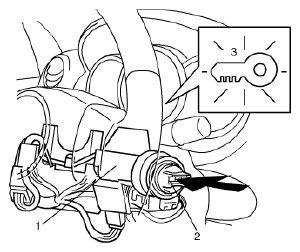

Push the ignition knob switch (2) of the steering lock unit (1) and check that the key indicator lamp (3) in the combination meter lights up in red or blue. If it does not light, go to KEY INDICATOR LAMP CIRCUIT CHECK (KEY INDICATOR LAMP DOESN'T LIGHT WHEN IGNITION KNOB SWITCH IS PUSHED.) .
