Circuit Diagram

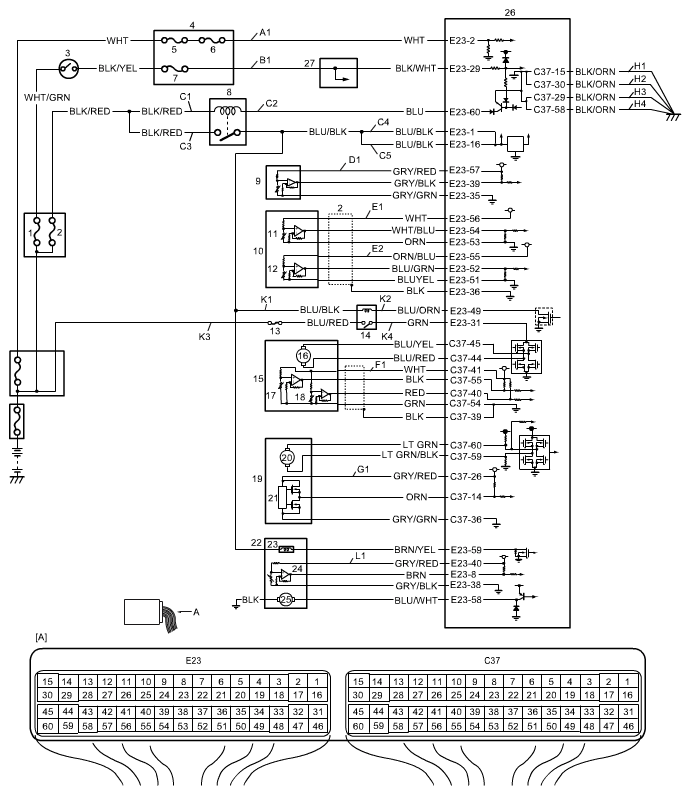

Fig 1: ECM Power And Ground - Circuit Diagram
G08895272Courtesy of SUZUKI OF AMERICA CORP.

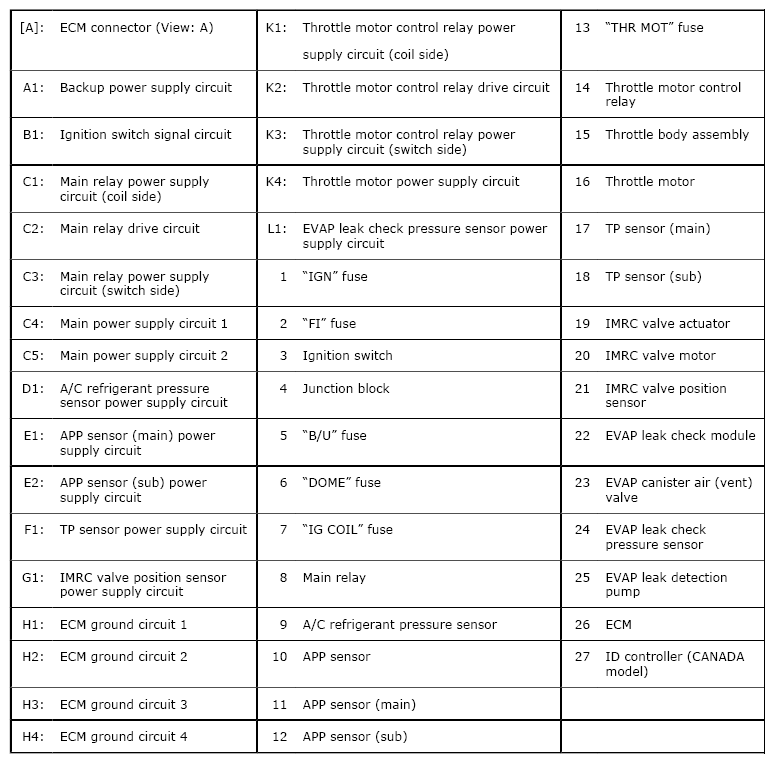

Fig 2: ECM Power And Ground - Circuit Diagram Legends
G08895273Courtesy of SUZUKI OF AMERICA CORP.
