DTC P2004: Intake Manifold Runner Control Stuck Open EVAP-Leak-Check Model; P2006: Intake Manifold Runner Control Stuck Closed
>>
Circuit Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit Diagram

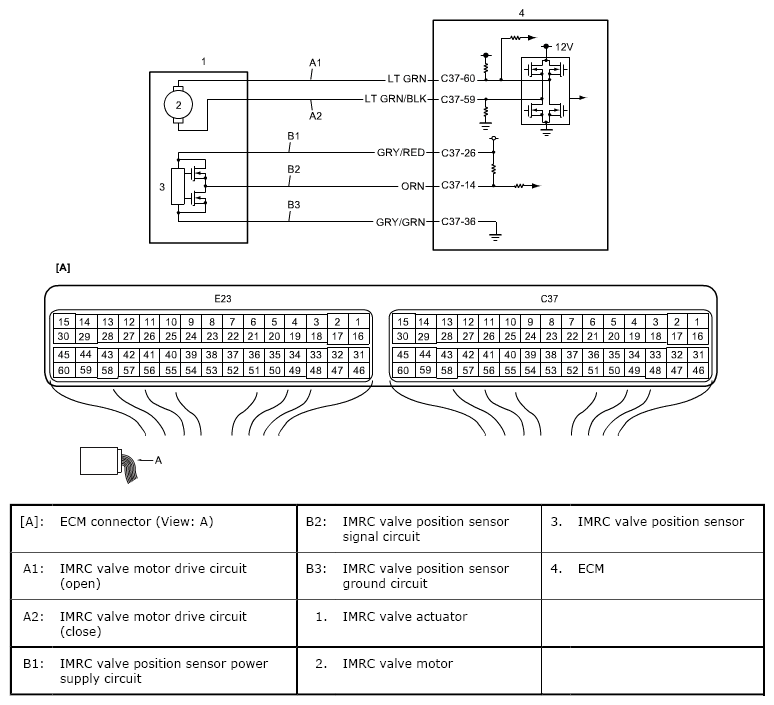

Fig 1: Intake Manifold Runner Control Stuck - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
