EVAP-Leak-Check Model

When air is blown into tank pipe port (1), air should flow with no resistance through purge pipe port (2) and EVAP leak check module port (3).

If any abnormality is found, replace EVAP canister.

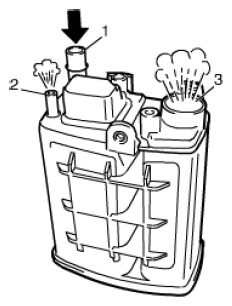

Fig 1: Checking Tank Pipe Port, Purge Pipe Port And EVAP Leak Check Module Port

Courtesy of SUZUKI OF AMERICA CORP.
