Ignition System Wiring Circuit Diagram

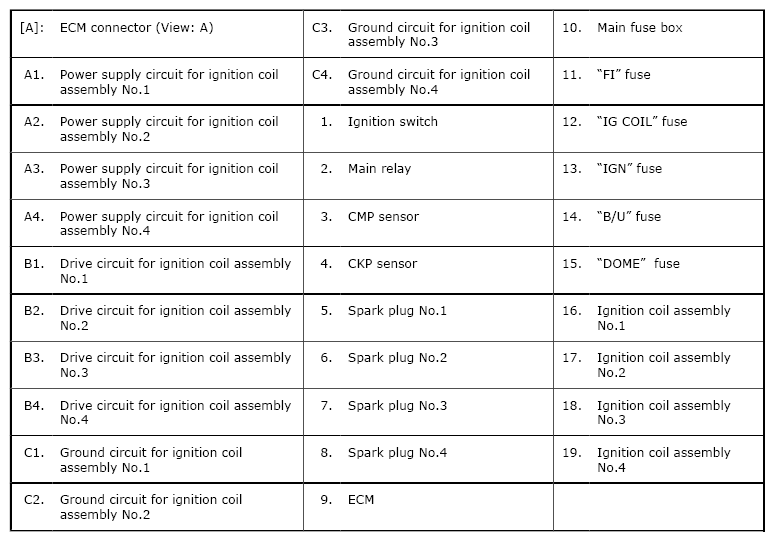

Fig 1: Ignition System Wiring Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

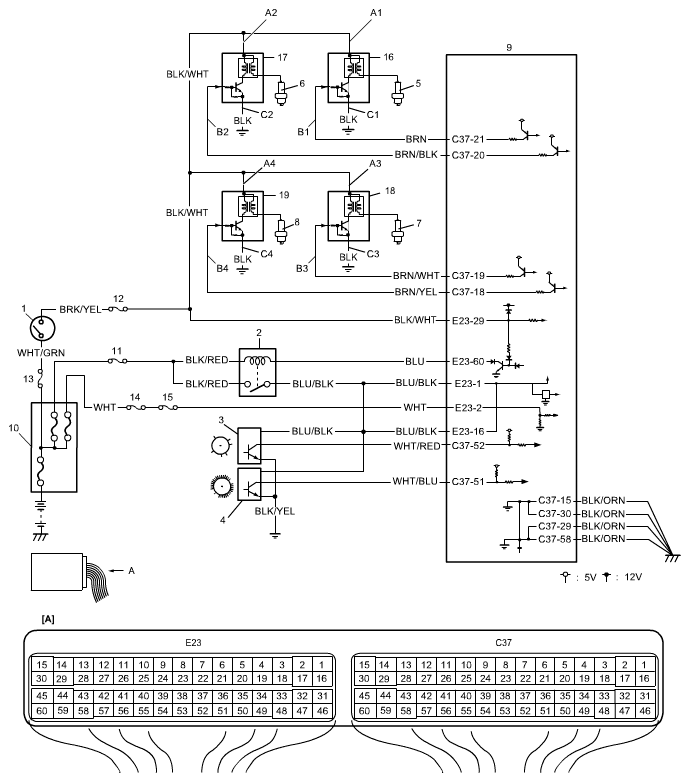

Fig 2: Ignition System Wiring Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
