Fuel Tank Removal and Installation: Removal

Relieve fuel pressure in fuel feed line. Refer to Fuel Pressure Relief Procedure .
Disconnect negative (-) cable from battery.
Hoist vehicle.
Remove exhaust center pipe. Refer to EXHAUST SYSTEM COMPONENTS .
Remove rear propeller shaft. Refer to PROPELLER SHAFT REMOVAL AND INSTALLATION .
With cable connected, detach parking brake cable clamp from fuel tank cover. Refer to PARKING BRAKE CABLE LOCATION .
Disconnect fuel filler hose (2) from fuel filler neck referring to Step 1) to Step 3) of "Removal" under Fuel Tank Inlet Valve Removal and Installation .
Disconnect fuel pump connector (1).

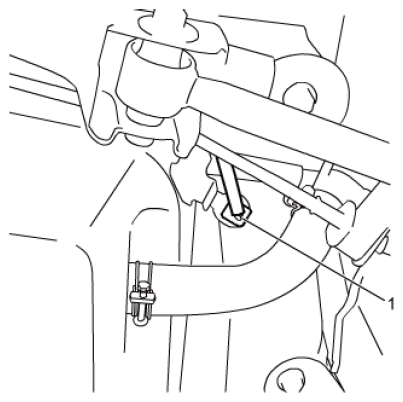

Fig 1: Identifying Fuel Pump Connector
Courtesy of SUZUKI OF AMERICA CORP.
Drain fuel from fuel tank.
WARNING: There is a risk of fire or explosion if the drained fuel is stored in an inappropriate container.
Avoid using an open container to hold the fuel.

NOTE: The hose of the hand-operated pump could damage the fuel tank inlet valve if too much force is used when inserting it into the fuel tank.
Do not apply too strong a force when inserting the pump hose into the fuel tank.
Disconnect fuel feed pipe (2) and EVAP canister hose (1) from each pipe. Refer to Fuel Hose Disconnecting and Reconnecting .

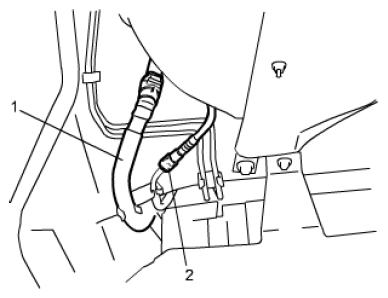

Fig 2: Identifying Evap Canister Hose And Fuel Feed Pipe
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel tank cover (1).

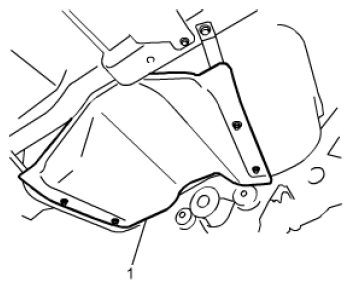

Fig 3: Identifying Fuel Tank Cover
Courtesy of SUZUKI OF AMERICA CORP.
Support fuel tank (1) with jack (2) and remove fuel tank bolts.

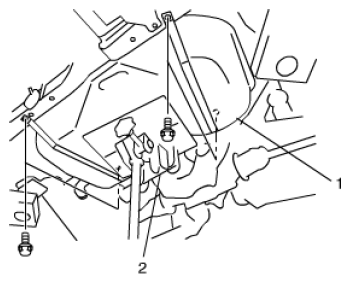

Fig 4: Supporting Fuel Tank With Jack
Courtesy of SUZUKI OF AMERICA CORP.
Disconnect breather hose (1) from fuel tank while lowering fuel tank, and remove fuel tank.

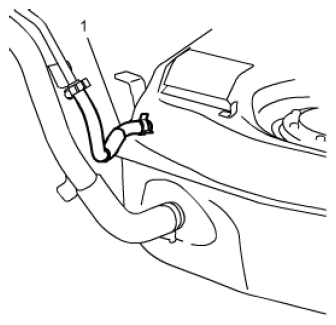

Fig 5: Identifying Breather Hose
Courtesy of SUZUKI OF AMERICA CORP.
