Fuel Tank Inlet Valve Removal and Installation: Removal

Remove fuel filler cap.
Insert hose of a hand operated pump into fuel filler hose (1) and drain fuel in space "A" shown in figure.
WARNING: There is a risk of fire or explosion if the drained fuel is stored in an inappropriate container.
Avoid using an open container to hold the fuel.

NOTE: The hose of the hand-operated pump could damage the fuel tank inlet valve if too much force is used when inserting it into the fuel tank.
Do not apply too strong a force when inserting the pump hose into the fuel tank.

Fig 1: Identifying Dimension Of Inserting Hose Into Fuel Filler Hose
Courtesy of SUZUKI OF AMERICA CORP.
Hoist vehicle, and remove clamps (2) and fuel filler hose (1).

Fig 2: Identifying Fuel Filler Hose And Clamps
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel tank inlet valves (1) using flat-blade screwdriver (2) or the like.
NOTE: If you are not careful when removing the fuel tank inlet valve (1), you can damage it.
Be careful not to damage the fuel tank inlet valve when using the flat-blade screwdriver or the like.

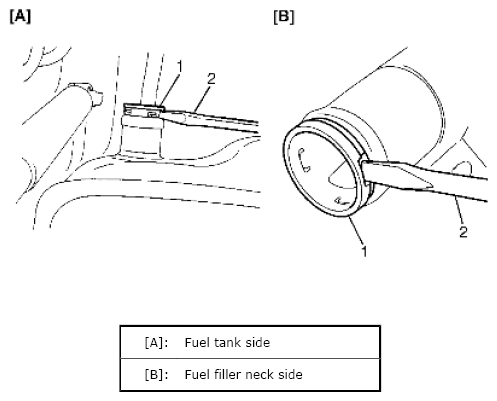

Fig 3: Removing Fuel Tank Inlet Valves Using Flat-Blade Screwdriver
Courtesy of SUZUKI OF AMERICA CORP.
