Fuel Pump Assembly Removal and Installation: Removal

Remove fuel tank from vehicle. Refer to FUEL TANK REMOVAL AND INSTALLATION .
Disconnect fuel feed pipe (2) and fuel pump/fuel level sensor connector (3) from fuel pump assembly (1). Refer to Fuel Hose Disconnecting and Reconnecting .
Remove fuel pump nuts (4).

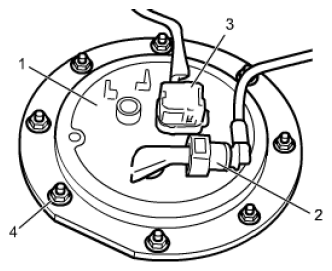

Fig 1: Identifying Fuel Feed Pipe, Fuel Pump/Fuel Level Sensor Connector And Fuel Pump Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Lift up fuel pump (1) and disconnect fuel suction hose (2) from fuel pump assembly. Refer to Fuel Hose Disconnecting and Reconnecting .

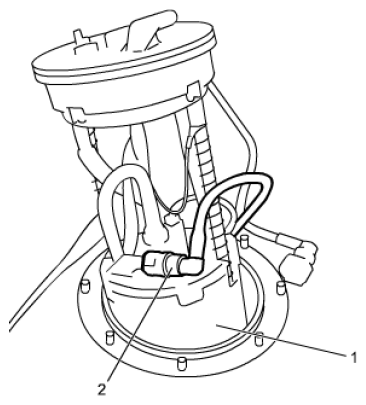

Fig 2: Identifying Fuel Pump And Fuel Suction Hose
Courtesy of SUZUKI OF AMERICA CORP.
Remove fuel pump assembly from fuel tank.
