Fuel Injector Removal and Installation: Removal

  1. Relieve fuel pressure. Refer to FUEL PRESSURE RELIEF PROCEDURE .
  2. Disconnect negative (-) cable from battery.
  3. Disconnect fuel injector connectors.
  4. Disconnect fuel feed hose from fuel delivery pipe (1).
  5. Remove fuel delivery pipe (1).
  6. Remove fuel injector(s) (2).

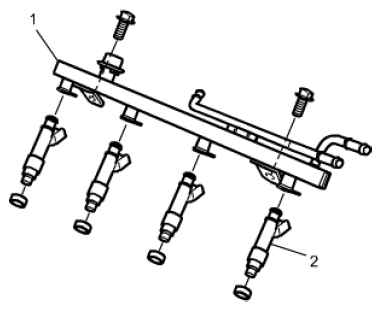

    Fig 1: Identifying Fuel Delivery Pipe And Fuel Injector(s)
    G08893872Courtesy of SUZUKI OF AMERICA CORP.
