Fuel Pump and Its Circuit Check: Wiring Diagram

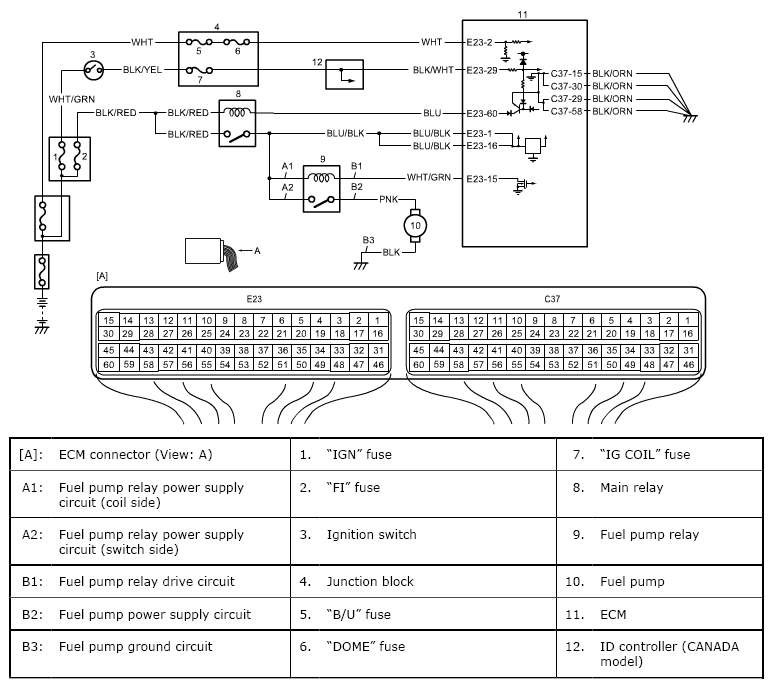

Fig 1: Fuel Pump Wiring Diagram

G08893856

Courtesy of SUZUKI OF AMERICA CORP.
