MAF (Mass Air Flow) and IAT (Intake Air Temperature) Sensor Removal and Installation: Removal

  1. Disconnect negative cable from battery.
  2. Disconnect MAF and IAT sensor connector.
  3. Remove MAF and IAT sensor (1) from air cleaner case (2).

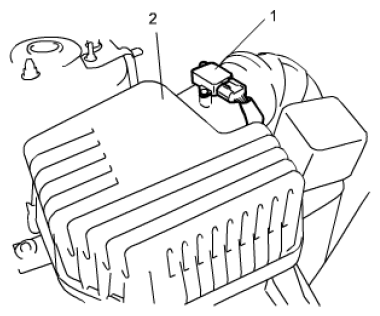

    Fig 1: Identifying MAF And IAT Sensor Or Air Cleaner Case
    G08895372Courtesy of SUZUKI OF AMERICA CORP.
