F-2 ABS Circuit Diagram

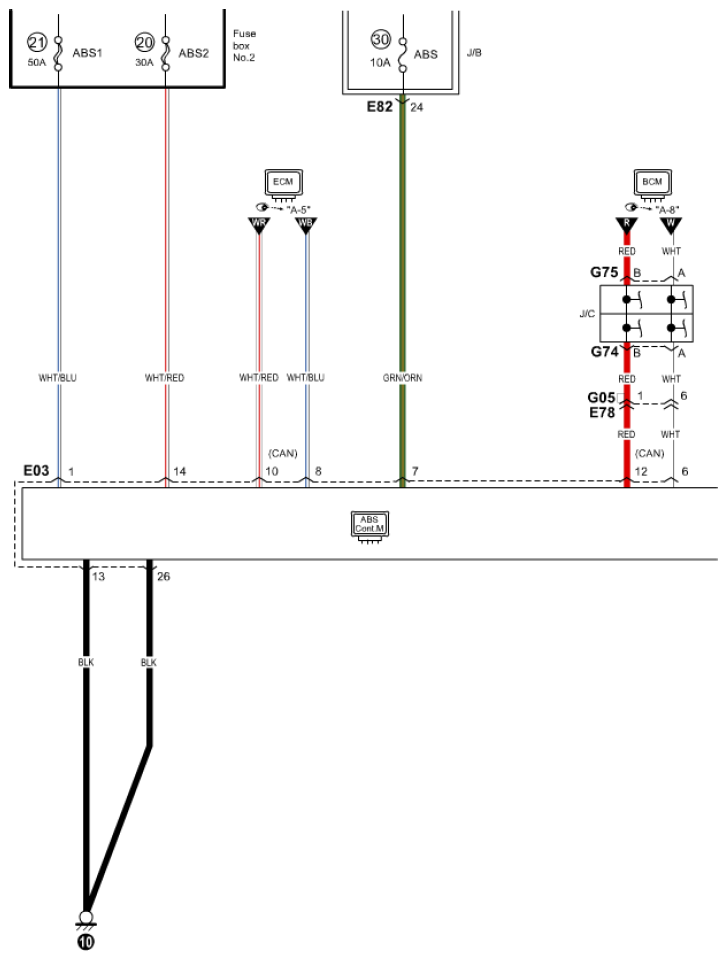

Fig 1: F-2 ABS - Circuit Diagram (1 Of 2)
G08899422Courtesy of SUZUKI OF AMERICA CORP.

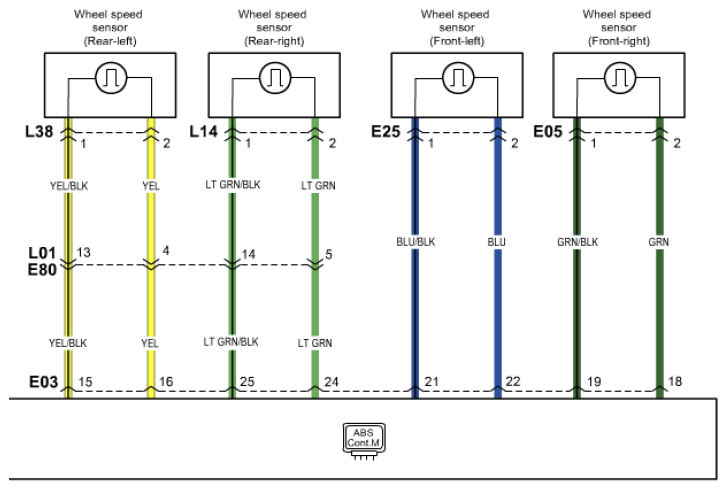

Fig 2: F-2 ABS - Circuit Diagram (2 Of 2)
G08899423Courtesy of SUZUKI OF AMERICA CORP.
