E-2 Auto A/C System Circuit Diagram

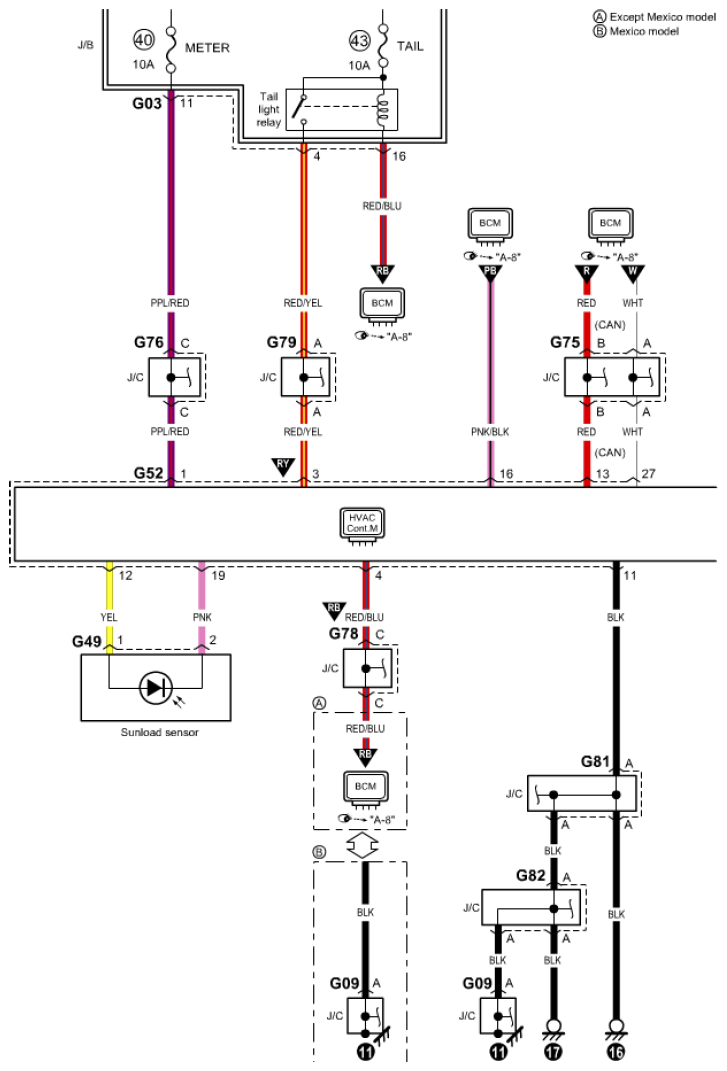

Fig 1: E-2 Auto A/C System - Circuit Diagram (1 Of 2)
G08899415Courtesy of SUZUKI OF AMERICA CORP.

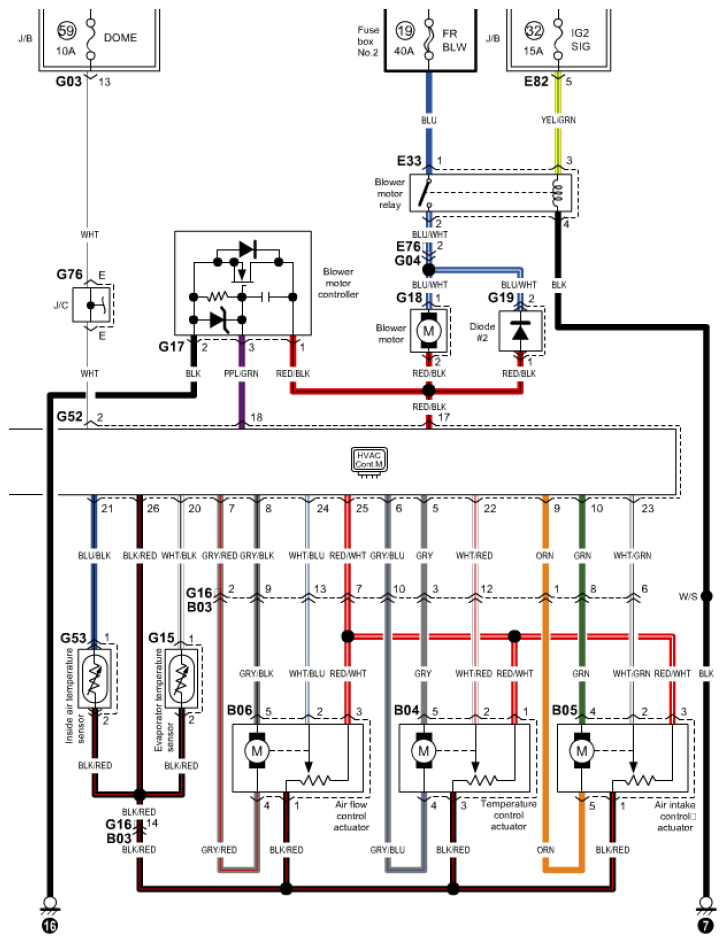

Fig 2: E-2 Auto A/C System - Circuit Diagram (2 Of 2)
G08899416Courtesy of SUZUKI OF AMERICA CORP.
