D-9 Headlight Leveling System Circuit Diagram (Manual Leveling)

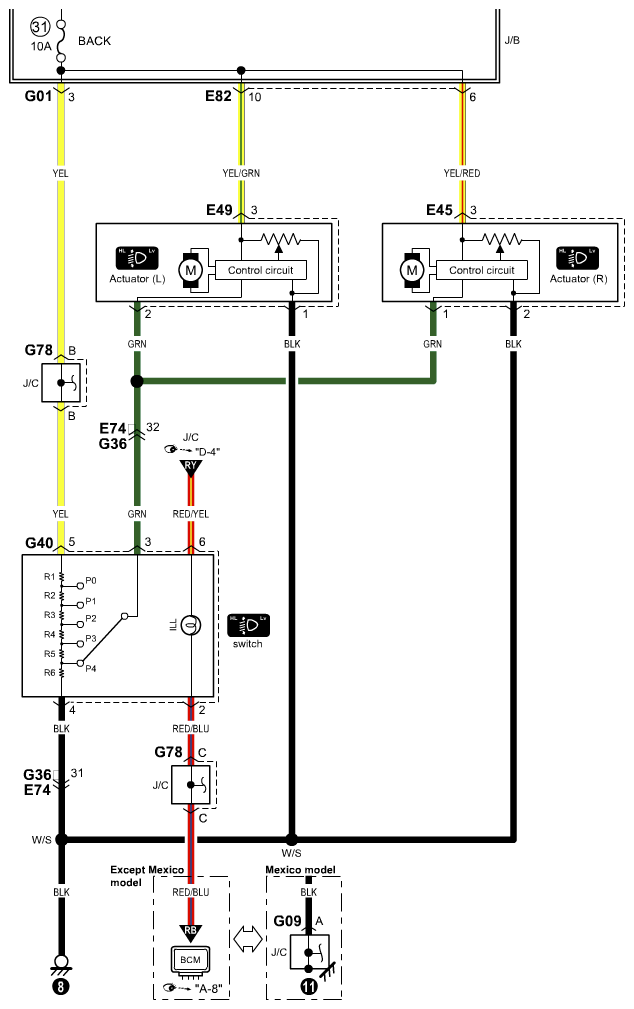

Fig 1: D-9 Headlight Leveling System - Circuit Diagram (Manual Leveling)
G08899413Courtesy of SUZUKI OF AMERICA CORP.
