D-5 Interior Light System Circuit Diagram

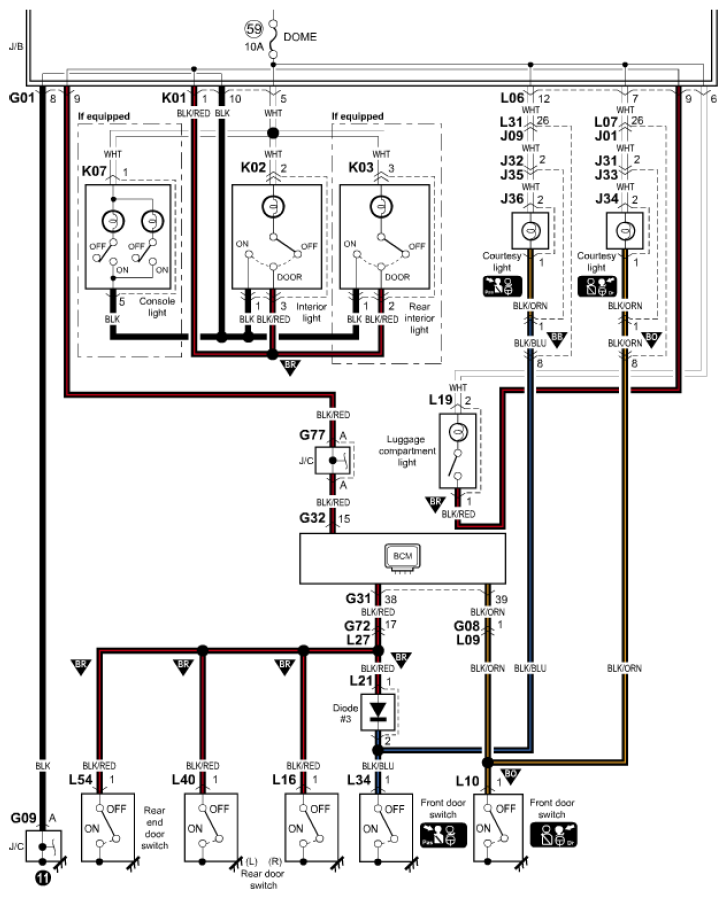

Fig 1: D-5 Interior Light System - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
