D-2 Position, Tail and Licence Plate Light System Circuit Diagram

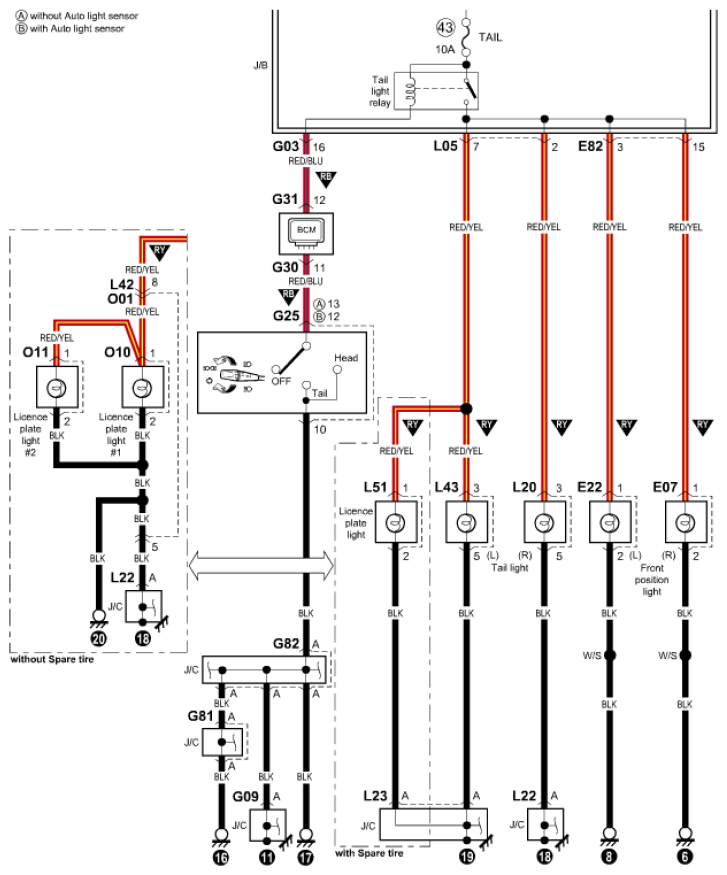

Fig 1: D-2 Position, Tail And Licence Plate Light System - Circuit Diagram
G08899405Courtesy of SUZUKI OF AMERICA CORP.
