B-9 Keyless Start System Circuit Diagram

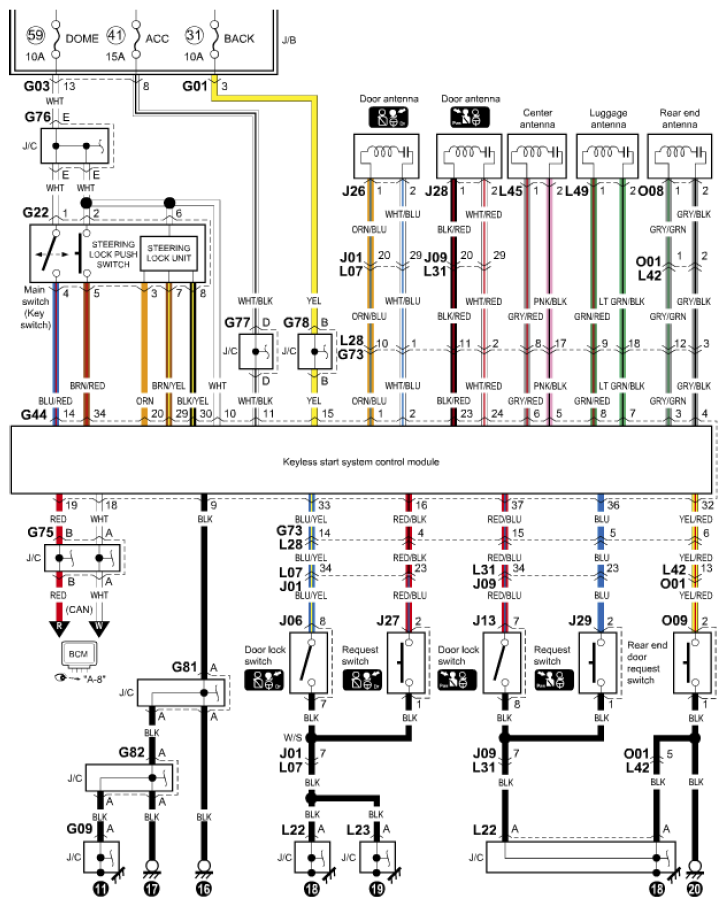

Fig 1: B-9 Keyless Start System - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
