B-3 Rear Defogger Circuit Diagram

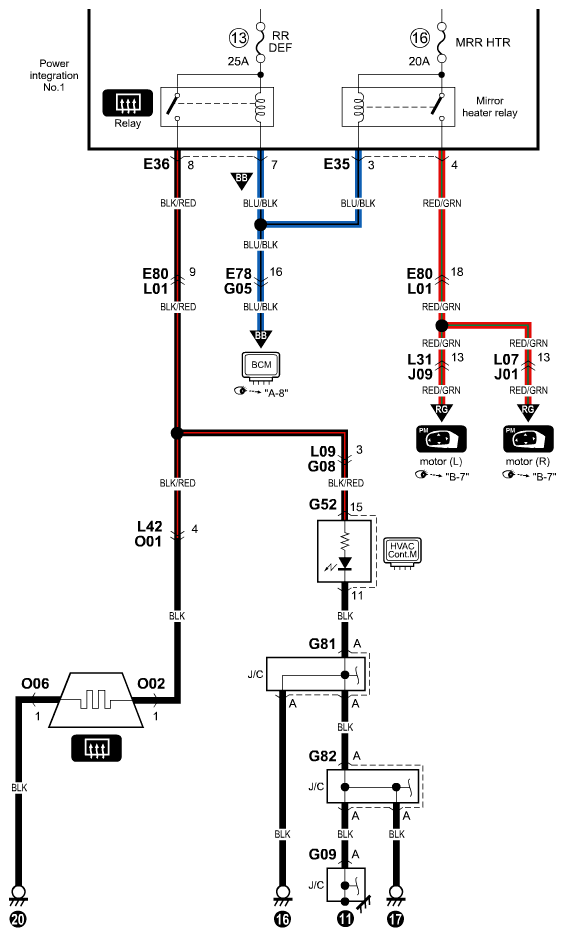

Fig 1: B-3 Rear Defogger - Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
