A-5 Engine and A/C Control System Circuit Diagram

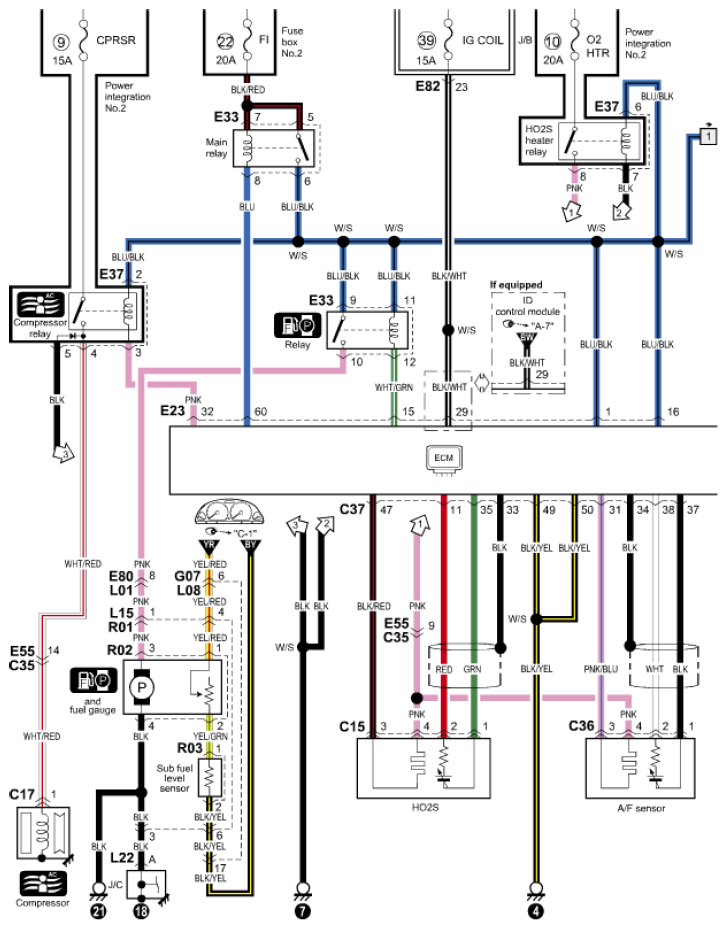

Fig 1: A-5 Engine And A/C Control System - Circuit Diagram (1 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

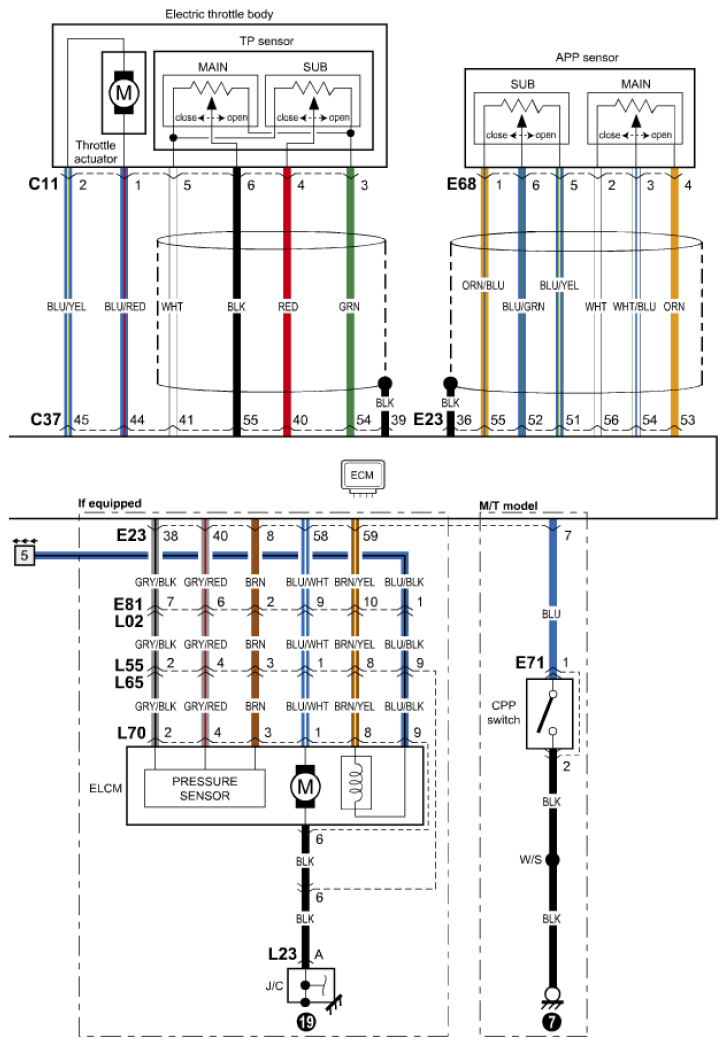

Fig 2: A-5 Engine And A/C Control System - Circuit Diagram (2 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

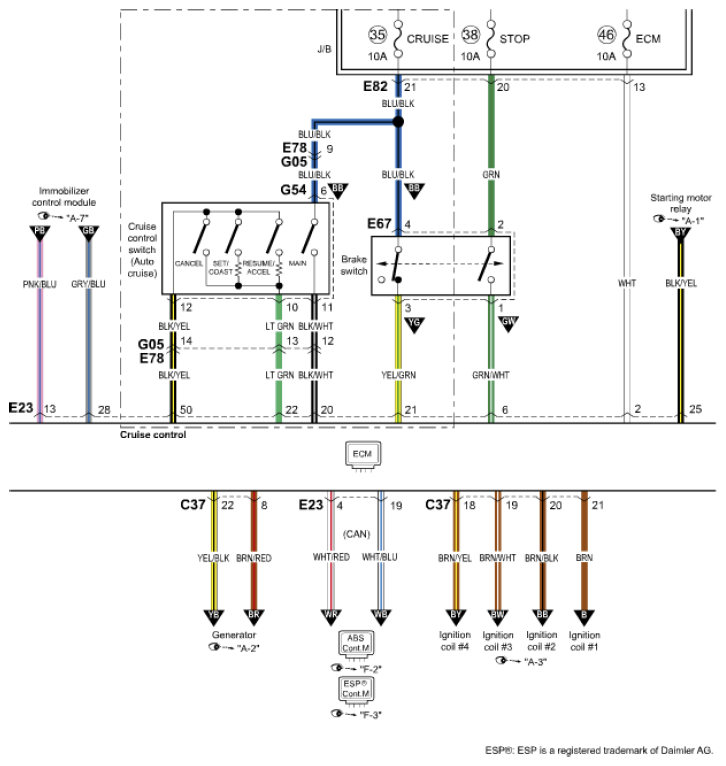

Fig 3: A-5 Engine And A/C Control System - Circuit Diagram (3 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

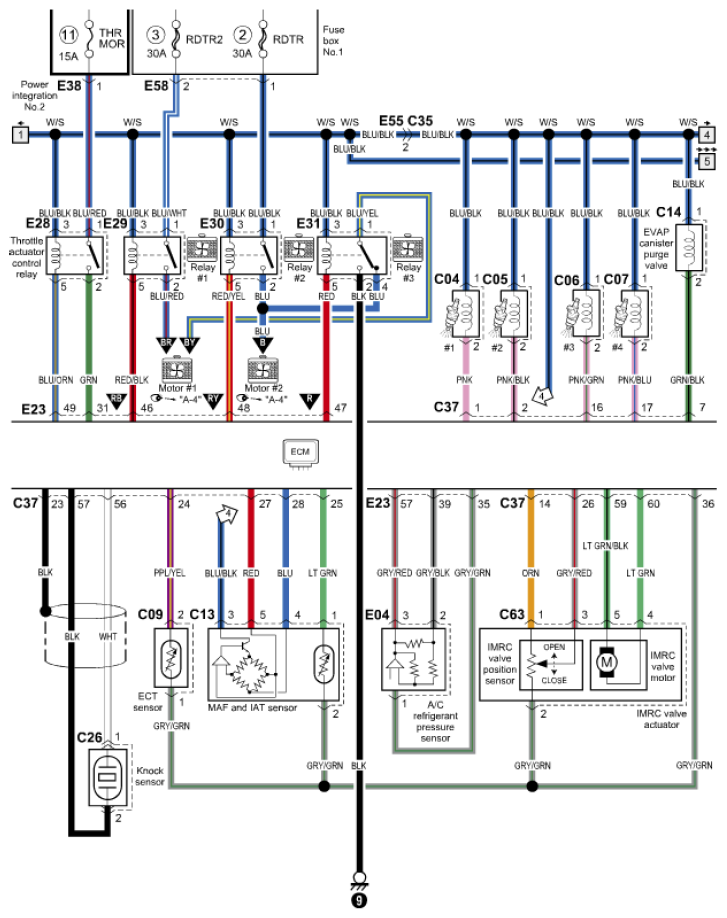

Fig 4: A-5 Engine And A/C Control System - Circuit Diagram (4 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.

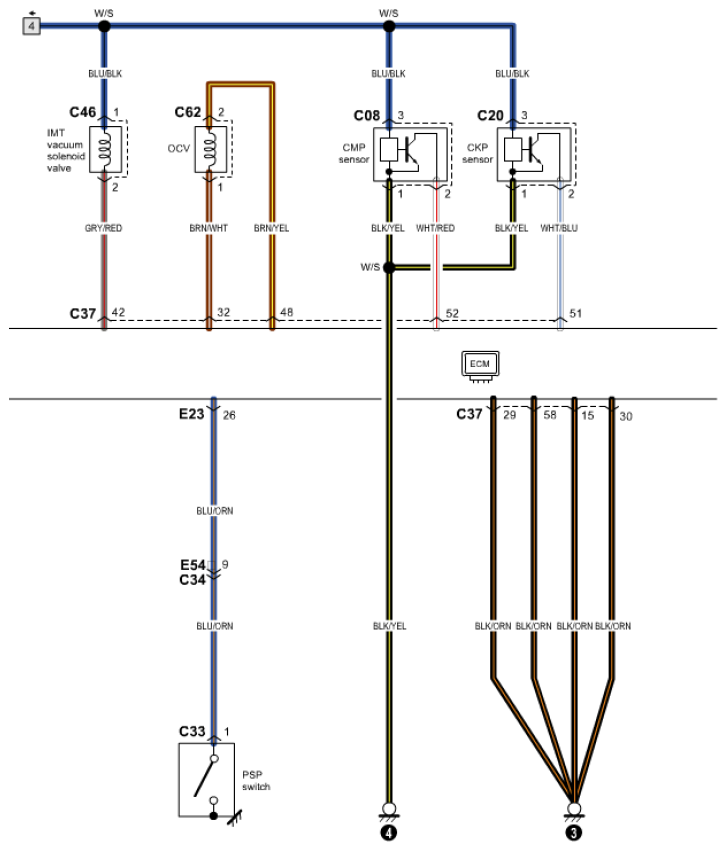

Fig 5: A-5 Engine And A/C Control System - Circuit Diagram (5 Of 5)

Courtesy of SUZUKI OF AMERICA CORP.
