A-10 4WD Control System Circuit Diagram

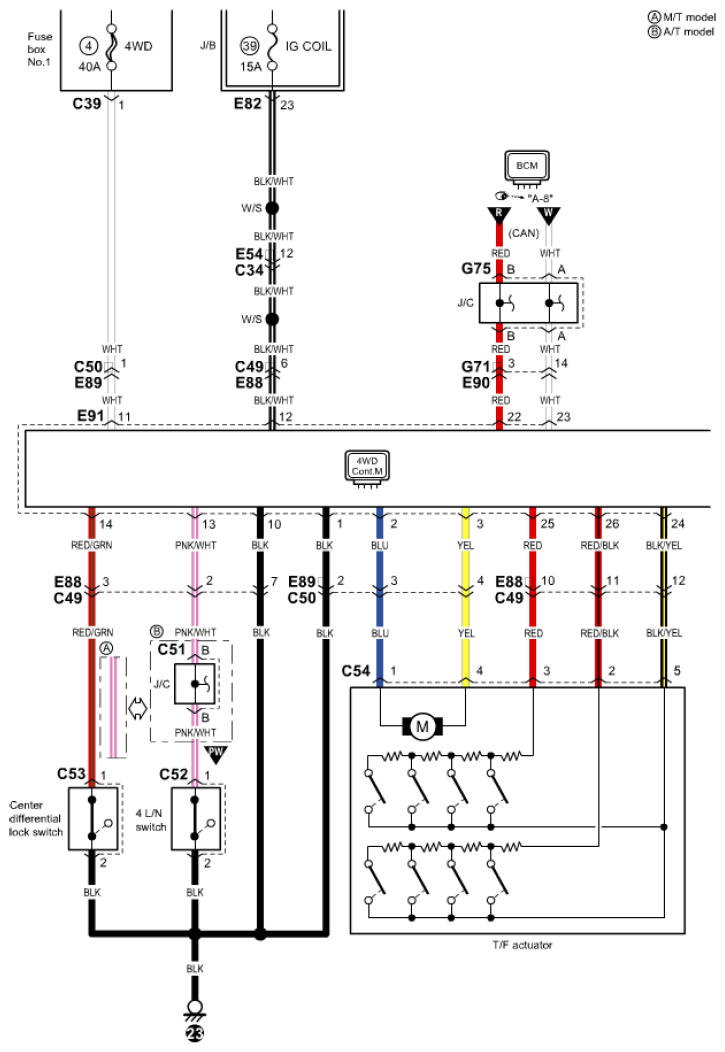

Fig 1: A-10 4WD Control System - Circuit Diagram (1 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.

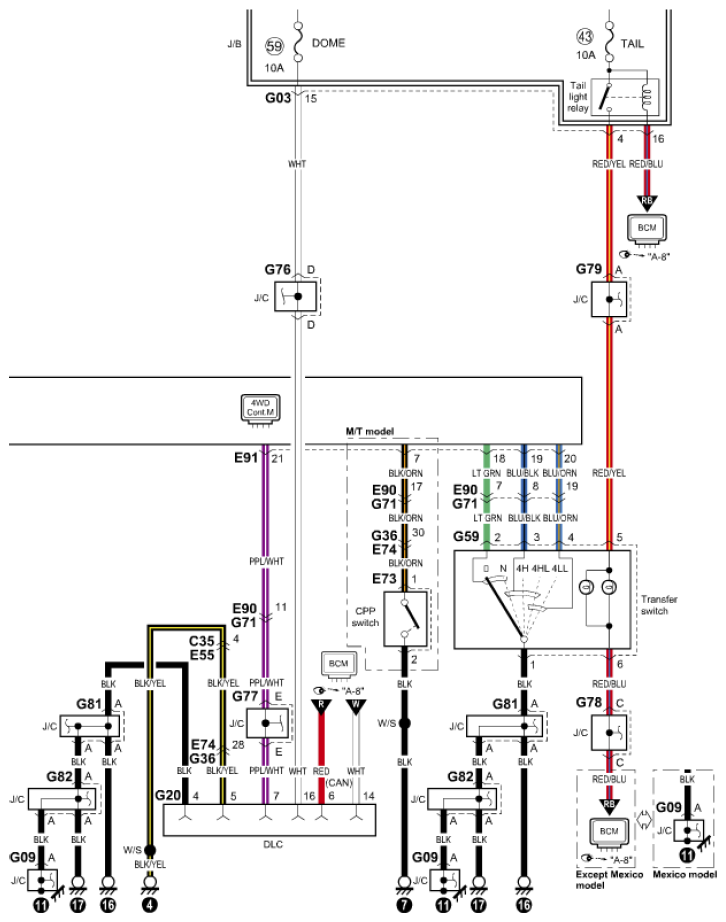

Fig 2: A-10 4WD Control System - Circuit Diagram (2 Of 2)
Courtesy of SUZUKI OF AMERICA CORP.
