Reassembling Note for Wiring Harness
>>
Around Main Floor
>>
Left Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Left Side

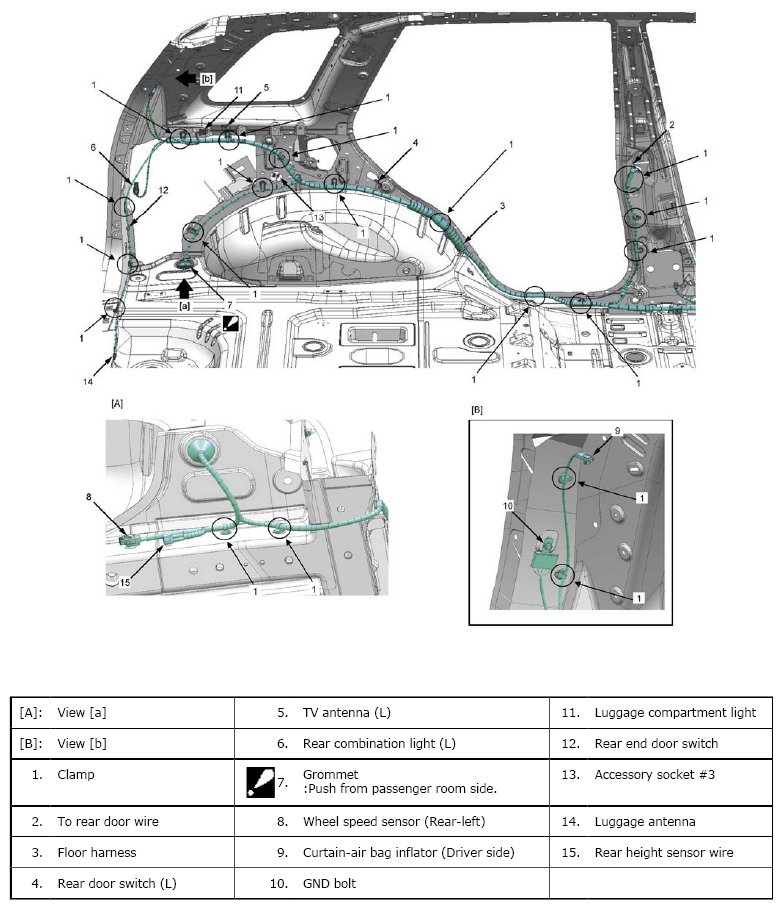

Fig 1: Identifying Wiring Harness Clips (Left Side, Around Main Floor)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
