On Dash Panel

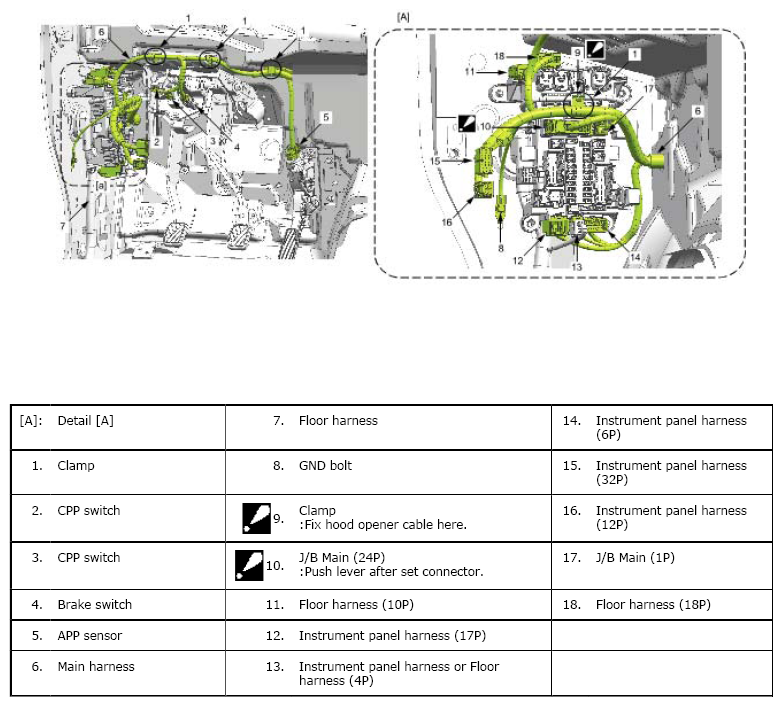

Fig 1: Identifying On Dash Panel Wiring Harness Clips (Around Instrument Panel)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
