Fuse Side

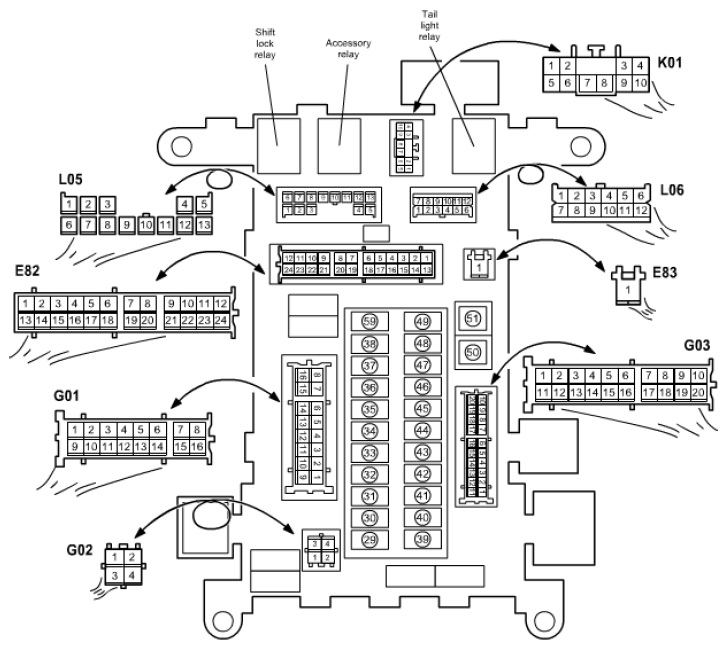

Fig 1: J/B Connector/Fuse Layout (Fuse Side) And Relays
G08899361Courtesy of SUZUKI OF AMERICA CORP.
JUNCTION BLOCK RELAY IDENTIFICATION

RELAY DESCRIPTION
Shift Lock Relay
Accessory Relay
Tail Light Relay
