L Connector

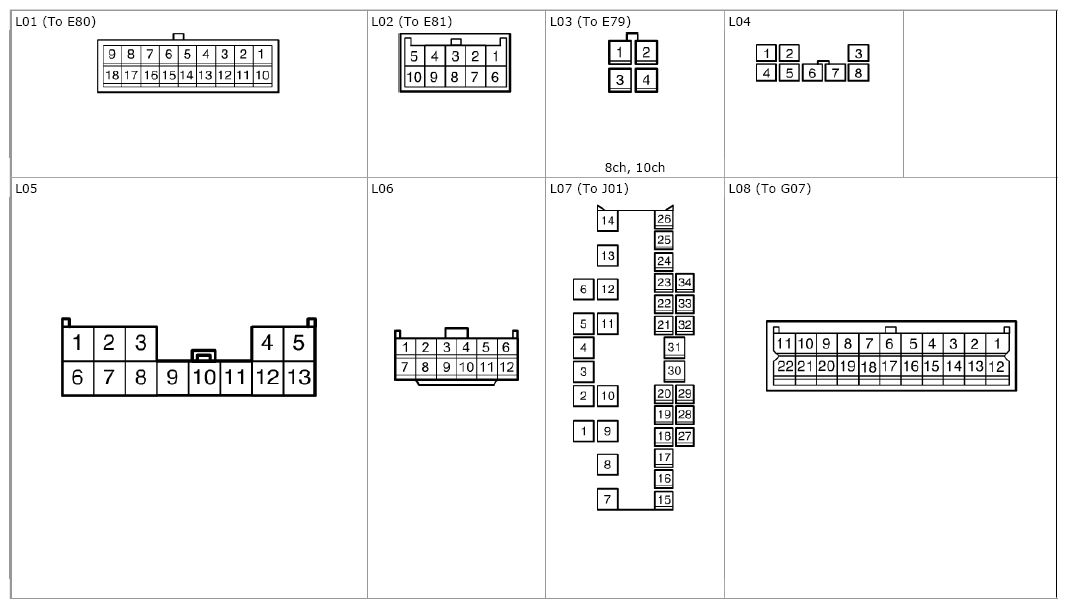

Fig 1: L Connector List (1 Of 4)
G08899444Courtesy of SUZUKI OF AMERICA CORP.

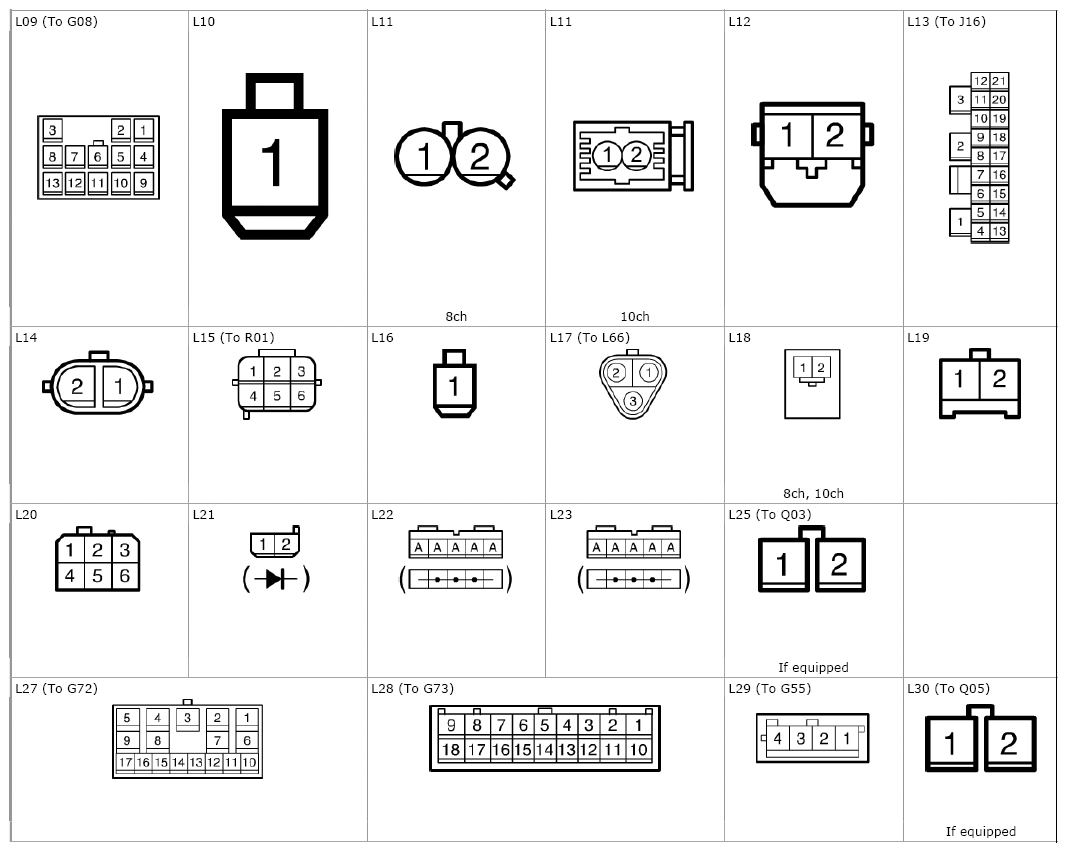

Fig 2: L Connector List (2 Of 4)
G08899445Courtesy of SUZUKI OF AMERICA CORP.

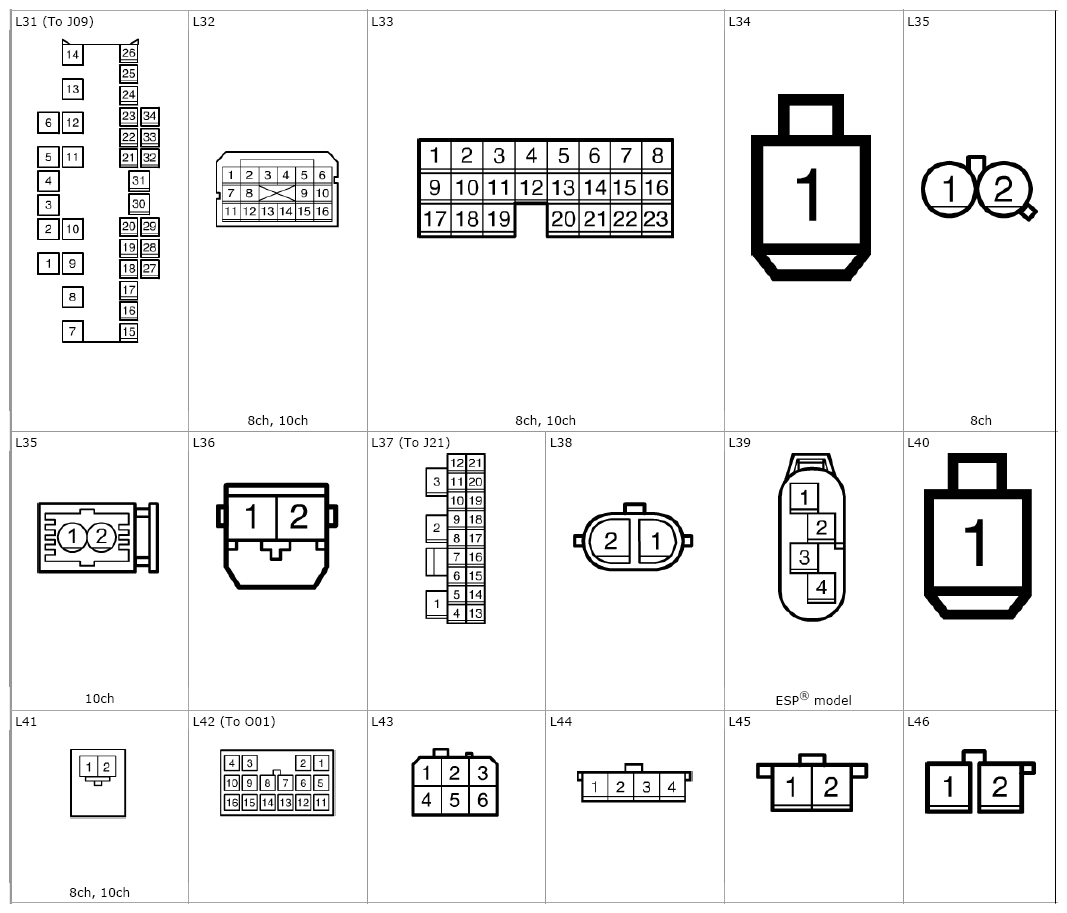

Fig 3: L Connector List (3 Of 4)
G08899446Courtesy of SUZUKI OF AMERICA CORP.

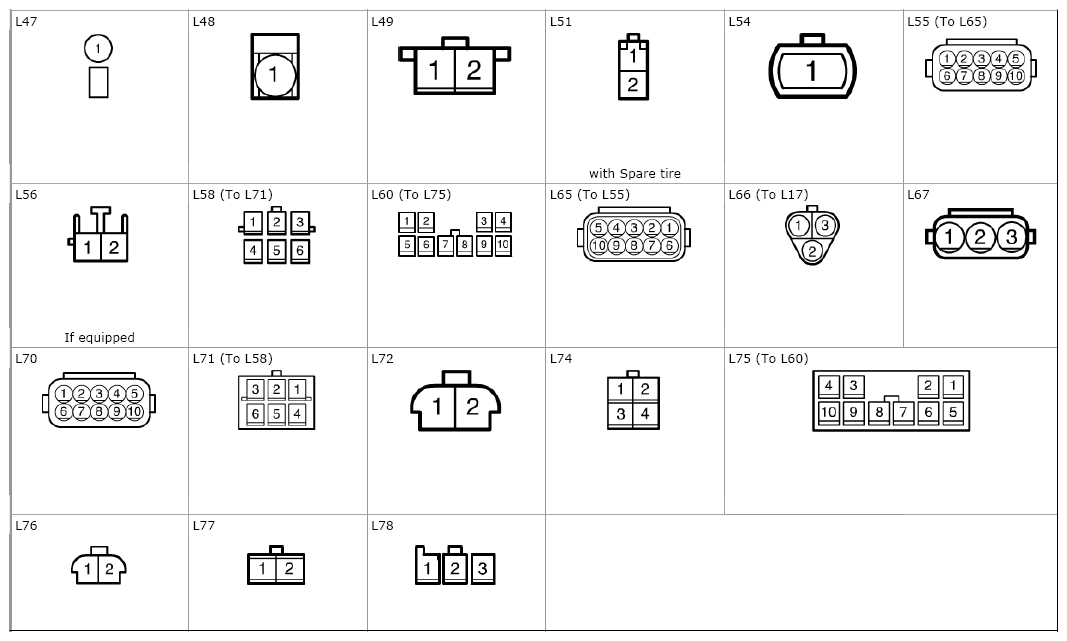

Fig 4: L Connector List (4 Of 4)
G08899447Courtesy of SUZUKI OF AMERICA CORP.
