E Connector

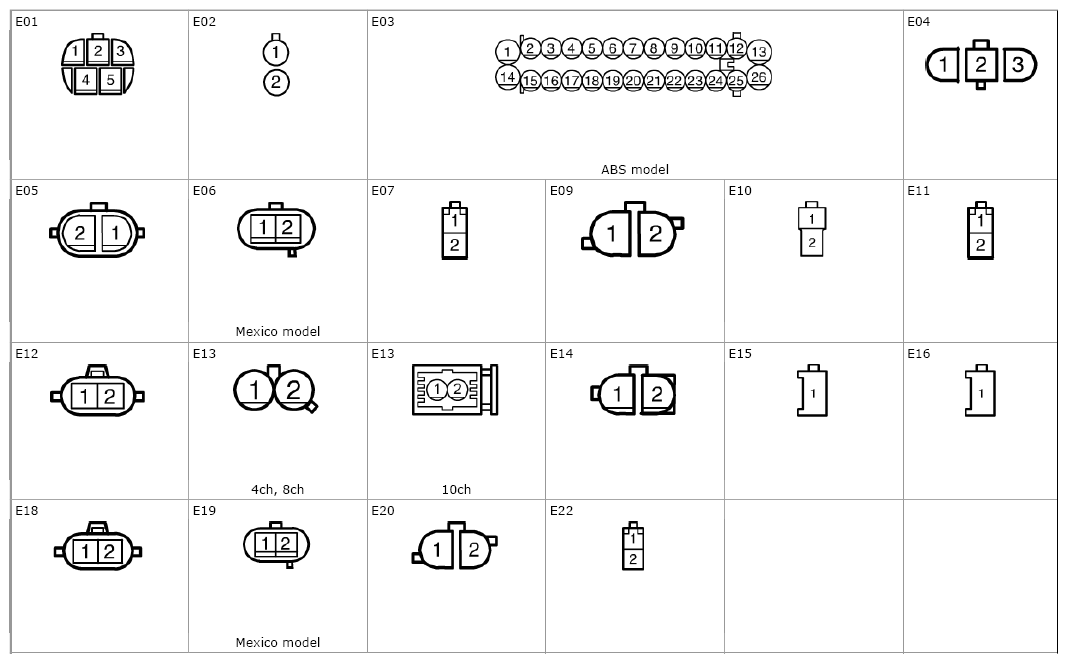

Fig 1: E Connector List (1 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

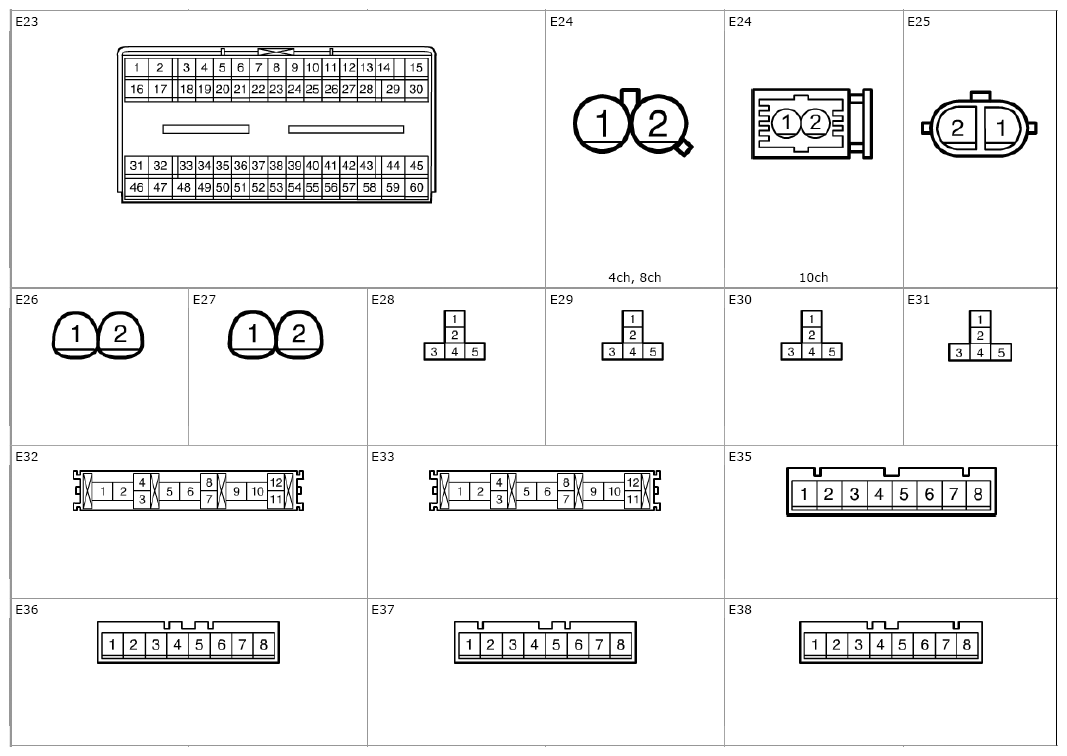

Fig 2: E Connector List (2 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

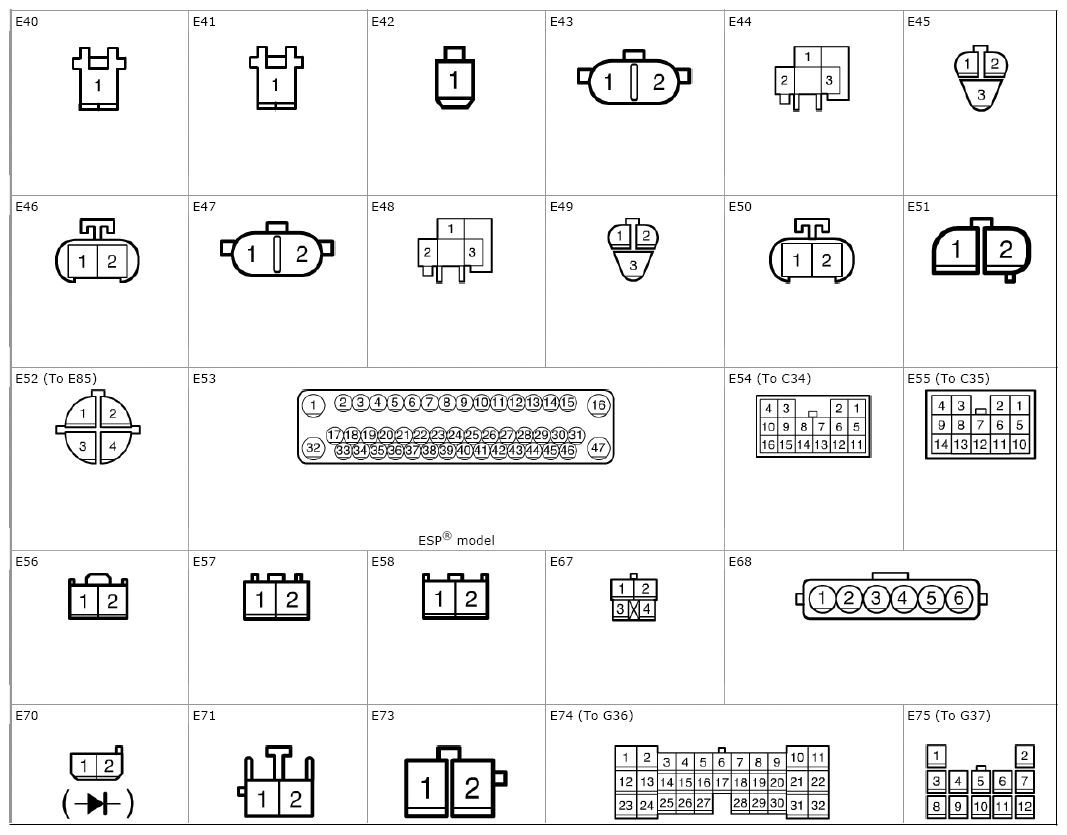

Fig 3: E Connector List (3 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

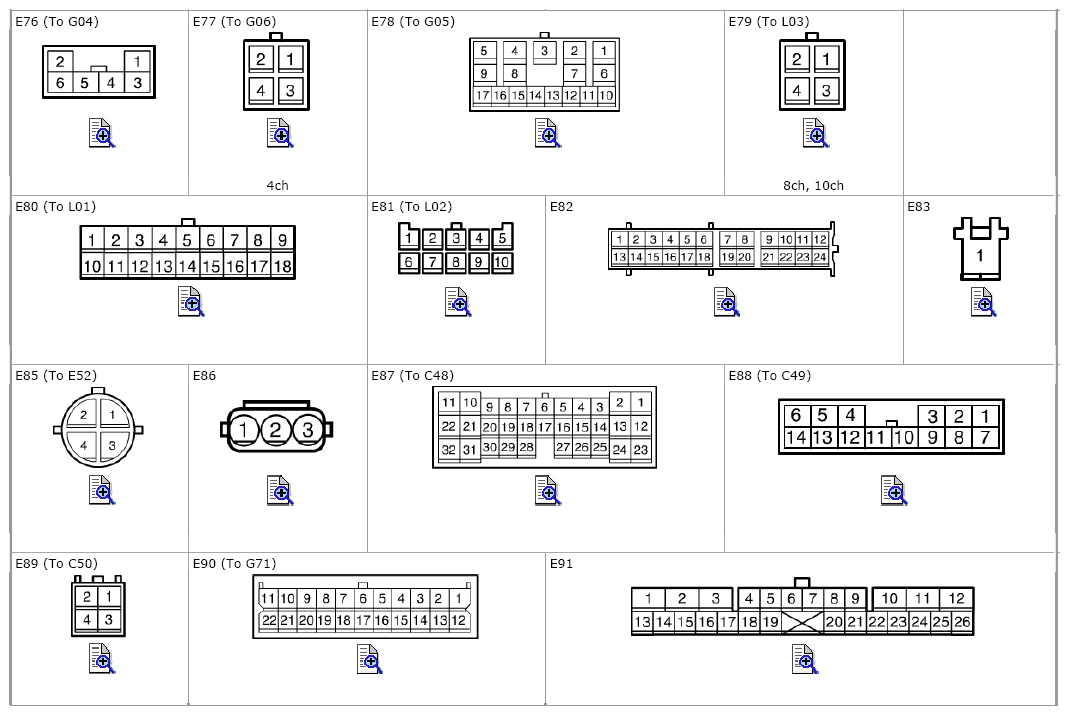

Fig 4: E Connector List (4 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.

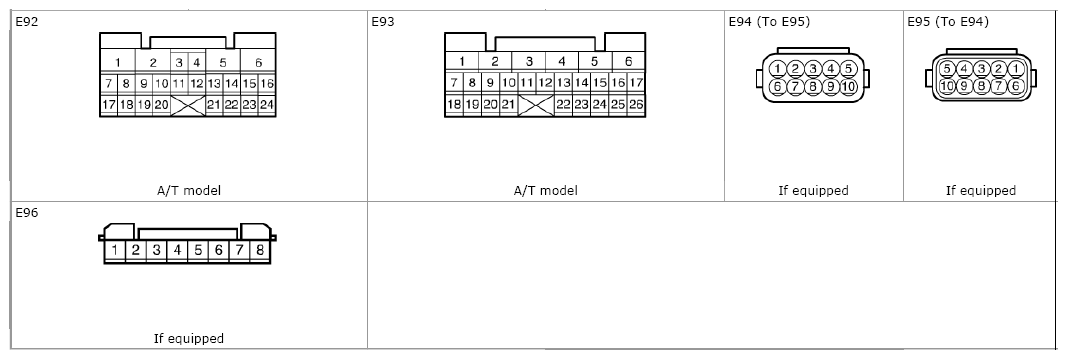

Fig 5: E Connector List (5 Of 5)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
