How to Read Connector Layout Diagram

[A-1]: Harness Symbol and Corresponding Harness Name

1. Battery cable
2. A/C harness
3. Engine harness
4. Injector harness, Oil pressure switch wire
5. Main harness, Power steering wire
6. Console wire
7. Instrument panel harness, Instrument panel antenna wire
8. Side door wire (including P/W related wires)
9. Interior light harness, Roof wire, Roof radio antenna wire, Rear speaker wire
10. Floor harness, Floor antenna wire, Coupling harness, Accessory socket wire, G sensor wire
11. Rear bumper harness
12. Rear end area harness/wires (except Rear bumper harness)
13. Side curtain-air bag wire, Side-air bag harness, Pretensioner harness
14. Fuel pump wire
15. Contact coil

    [A-2]: Connector Number

    [B]: Ground Point No  .

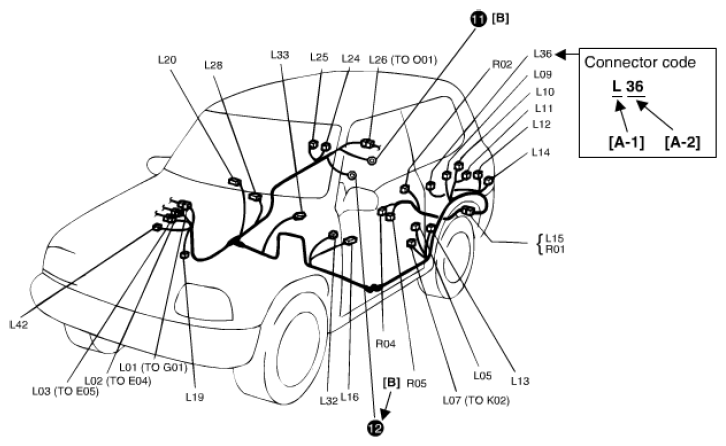

    Fig 1: Example Of Connector Layout Diagram

    Courtesy of SUZUKI OF AMERICA CORP.
