How to Read Connector Codes and Terminal Nos.

Connector code/Terminal No./Terminal layout
- The connector shape and terminal layout shown in this manual are those when viewed from "Z" in the illustration.
  Refer to LIST OF CONNECTORS .

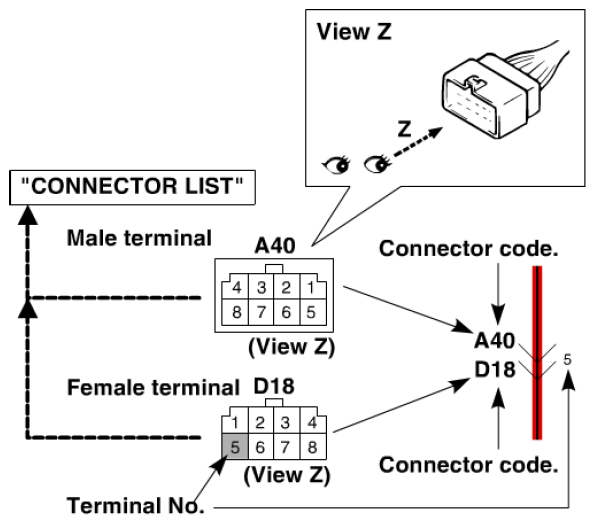

  Fig 1: Example Of Connector Code/Terminal No./Terminal Layout
  Courtesy of SUZUKI OF AMERICA CORP.

  NOTE: Molded terminal numbers that are different from the above can be found on some connectors in rare cases.
  These molded numbers are not applied in this manual.
Connector type

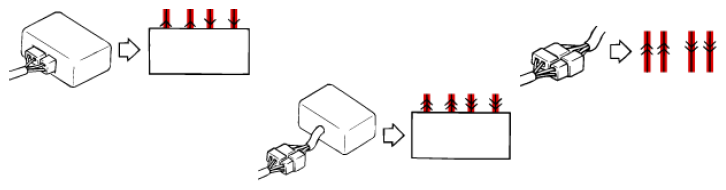

Fig 2: Example Of Connector Type
Courtesy of SUZUKI OF AMERICA CORP.
Terminals in one connector (Broken line) (B15)/Terminals in different connectors (B14, B16)

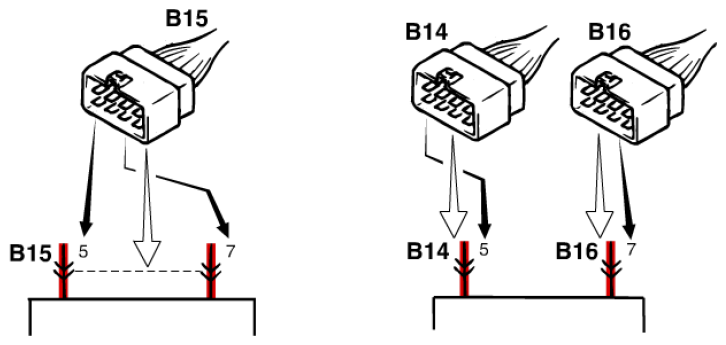

Fig 3: Example Of Terminals In Connector (Broken Line) (B15)/Terminals In Different Connectors (B14, B16)
Courtesy of SUZUKI OF AMERICA CORP.
Joint connector (J/C)
- The joint connector (J/C) connects several different wires with the same wire color at one place instead of connecting them by welding or caulking one by one. It is not an ordinary connector but a part of the continuous wire in the harness.

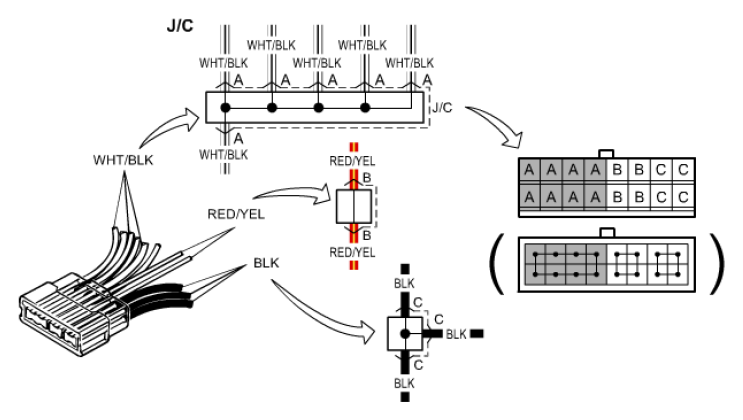

  Fig 4: Example Of Joint Connector (J/C)
  Courtesy of SUZUKI OF AMERICA CORP.
Weld splice (W/S)
- Several different wires with the same wire color are joined by welding at a W/S.

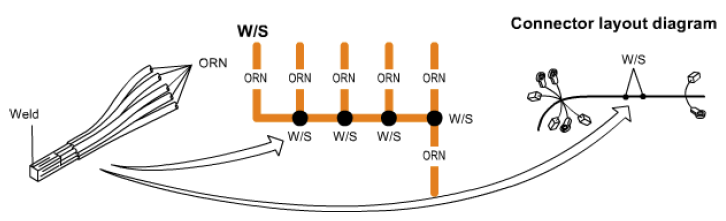

  Fig 5: Example Of Weld Splice (W/S)
  Courtesy of SUZUKI OF AMERICA CORP.
Junction block (J/B)

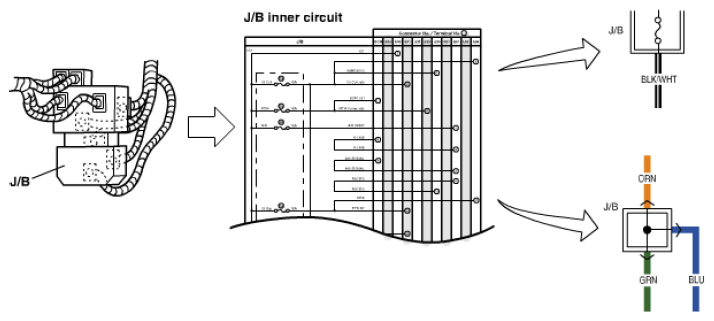

Fig 6: Example Of Junction Block (J/B)
Courtesy of SUZUKI OF AMERICA CORP.
Connector location, shape and terminal No.
Refer to CONNECTOR LAYOUT DIAGRAM .

Refer to SYSTEM CIRCUIT DIAGRAM .

Refer to LIST OF CONNECTORS .

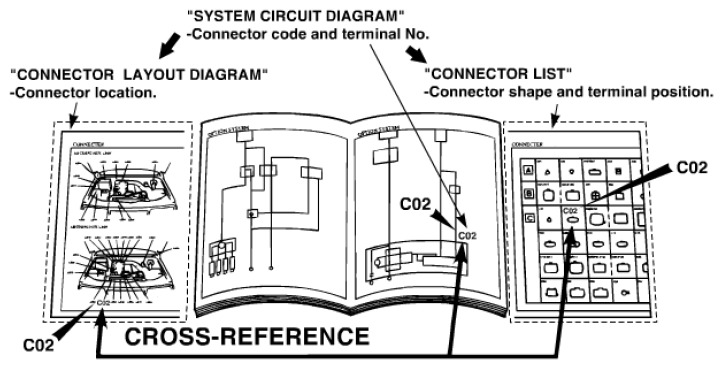

Fig 7: Example Of System Circuit Diagram, Connector Layout Diagram And Connector List
Courtesy of SUZUKI OF AMERICA CORP.
