Front Differential Unit Components

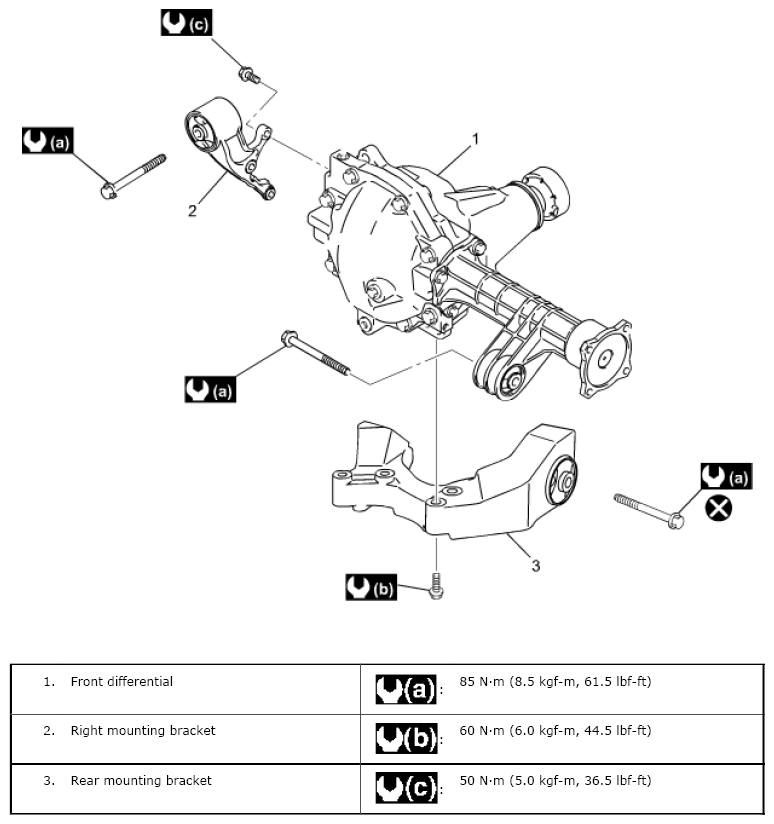

Fig 1: Exploded View Of Front Differential Unit
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
